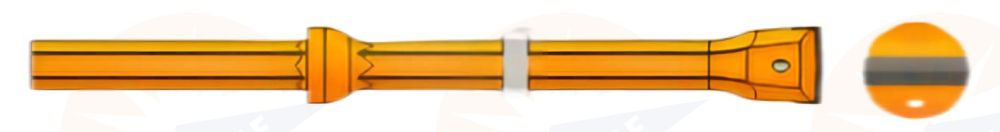

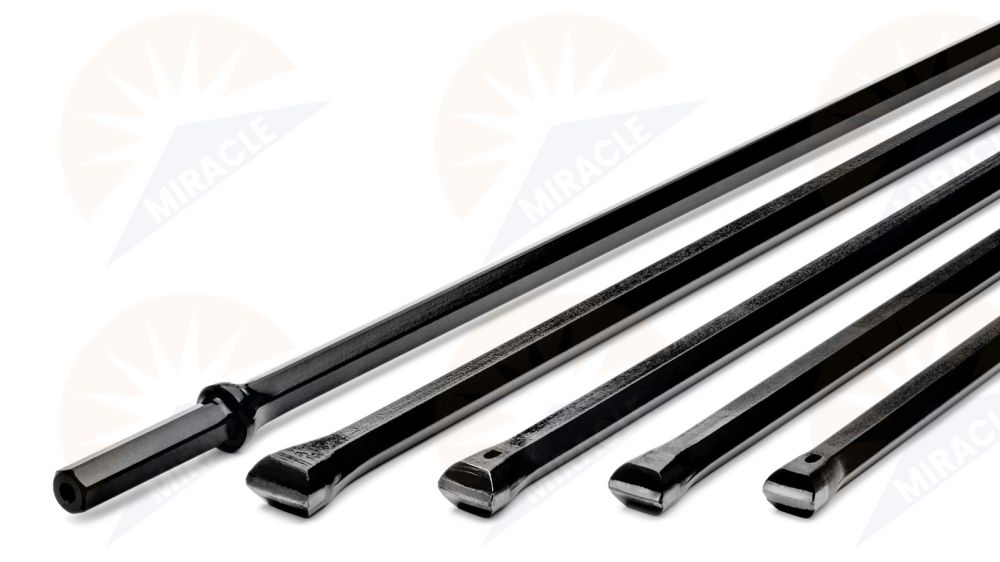

MIRACLE Integral Drill Rods
Integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling shank H22x108mm, H19x108mm, and standard hex. Bit diameters include 20-42mm, different lengths are available from 400mm to 8000mm usually. With the same steels as Sandvik and best carbides made in China, we are supplying different lengths of integral drill rods with different head diameters.
Parameters
• Shank size: Hex.19 x 108mm, Hex.22 x 108mm, Hex.19 x 82mm
• Head diameter: 26mm to 42mm.
• Length: 400 - 8000mm.
Features
• Carburizing process is applied to promote surface hardness, thus grant better wearing quality and lifespan for the drill rods;
• 23CrNi3Mo, which is in same league as Sandvik Sandbar 64, is applied as drill rod material.
• Cost-effective, good performance with reasonable price.
• Complete types of drill rod for various drilling scenarios.
• High spindle speed, with the utilization rate of the percussive force 18% to 25% higher than using separate drill bits;
• Easy to remove the integral drill rod instead of removing the drill bit, which avoids breakage, cracking of drill bit and breakage of the conical end of drill rod;
• The worn bit end of the integral drill rod can be re-used as the conical drill bit after polishing.
Applications
Drilling duties in tunneling, construction, mining, quarrying, etc.
Integral Drill Rods |
Shank Size | Length | Diameter |
Hex.22 x 108mm | 400 - 8000mm | 30 - 40mm |
Plug Hole Rods |
Shank Size | Length | Diameter |
Hex.19 x 108mm | 210mm | 17 - 22mm |
Hex.19 x 82mm | 210mm | 20 - 22mm |
| Shank Style | Length | Head Diameter | ||
| mm | foot/inch | mm | Inch | |
| Hex19 × 108mmWe can produce as your request of carbide size, different length of drill rods. | 400 ~ 4,000 | 1' 4" ~ 13' 1" | 23 ~ 35 | 27/32 ~ 1 3/8 |
| Hex22 × 108mm | 400 ~ 9,600 | 1' 4" ~ 31' 6" | 26 ~ 41 | 1 1/32 ~ 1 39/64 |
| Hex25 × 108mm | 600 ~ 6,400 | 1' 11 5/8" ~ 21' | 33 ~ 45 | 1 19/64 ~ 1 25/32 |
| Hex25 ×159mm | 800 ~ 6,400 | 2' 7" ~ 21' | 35 ~ 42 | 1 3/8 ~ 1 21/32 |
| Types of drill rods | Specifications | Length | Shank |

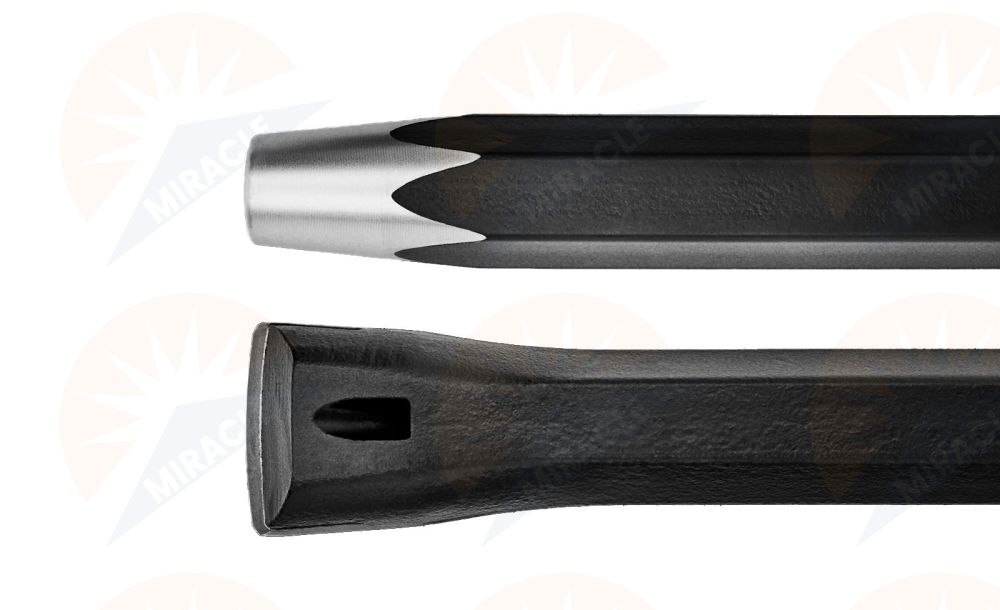

| Tapered drill rods | Taper Angle: 4, 6, 7, 11, 12 degree | 400mm to 8000mm | Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm |
| Integral drill steel | Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm | 400mm to 4800mm | |
| Plug hole rods | Chisel bit diameter: 17mm, 20mm, 22mm | 150mm to 710mm |
Our advantage:
1. Enterprise group combines manufacture and international trade;
2. Strict quality controll system with perfect equipment;
3. High technology enterprise with advanced production equipments;
4. Prompt delivery and all-around after-sales service;
FAQ
A: Are you trading company or manufacturer ?
Q: We are manufacturer.
A: Do you provide samples ?
Q: Yes, of course. We welcome sample order to test and check quality.
A: Can you accept small orders?
Q: We enjoy to cooperate with all clients whatever big or small order.
A: Could you accept OEM & ODM?
Q: Of course, as a manufacturer, OEM & ODM is available, our professional R&D center can help you on the project.
A: How long is your delivery time?
Q: Usually it's about 20 days,depends on your actual quantity.
