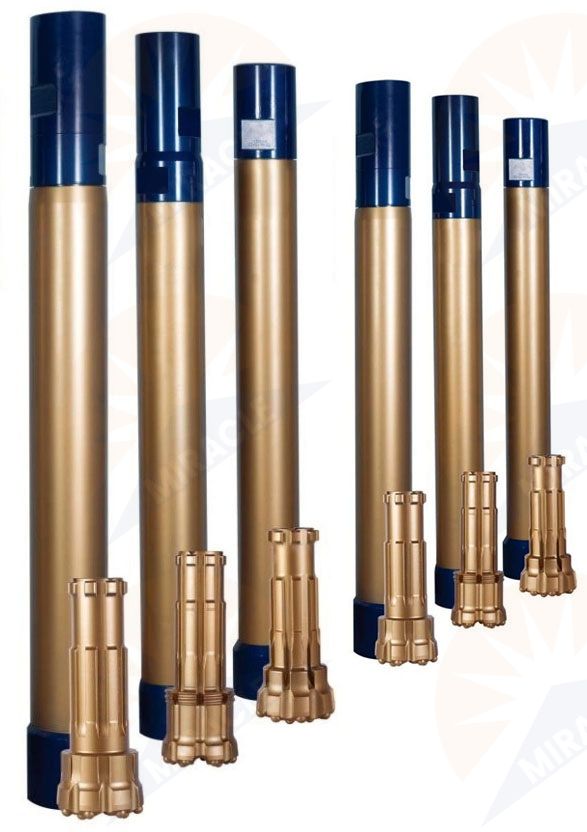

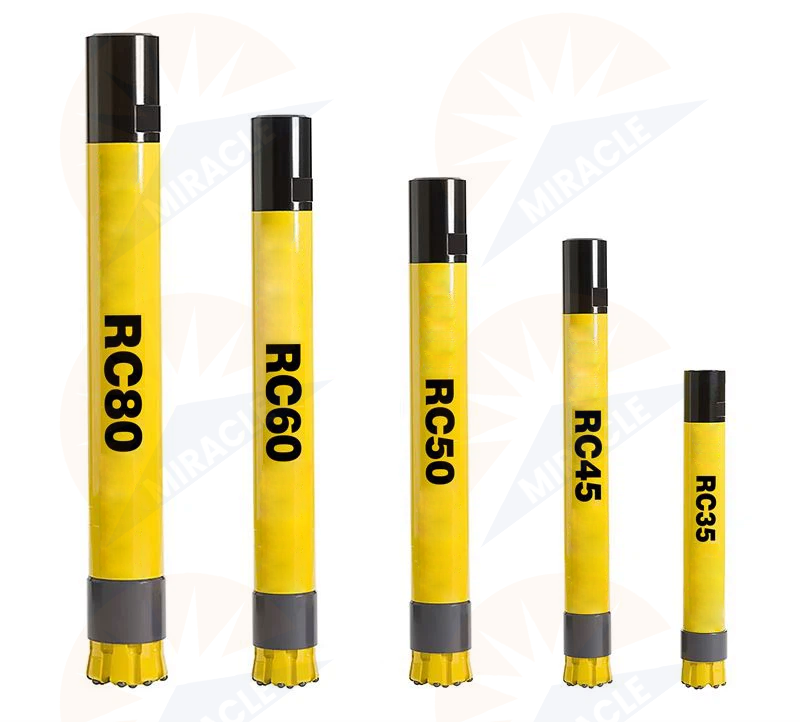

MIRACLE offers reverse circulation hammers with integrated bits designed to offer a cost-effective, heavy-duty sampling system for obtaining a continuous, high-quality geological sample. By maximizing the energy output and minimizing air consumption, MIRACLE'S products can assist in providing you with excellent production rates resulting in a low cost per meter drilling.

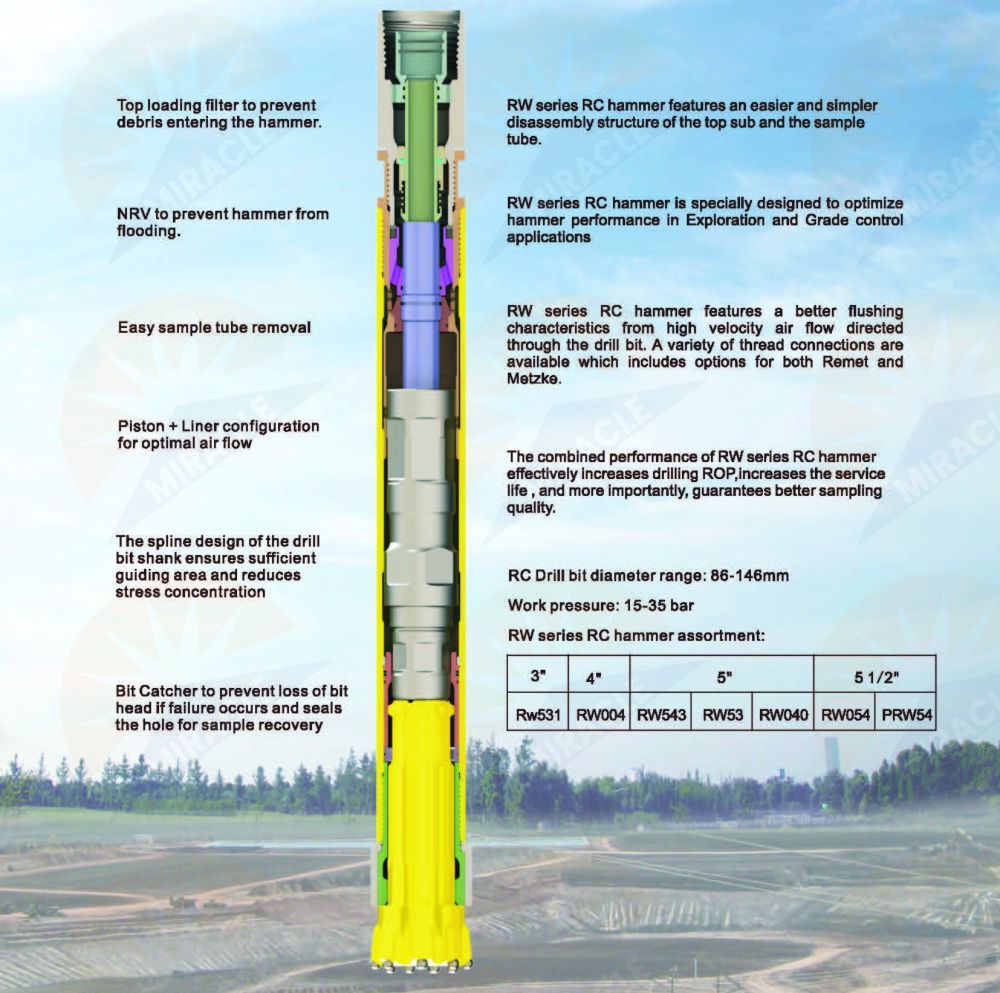

RC (Reverse Circulation) Drilling is similar to air core drilling in that the cuttings are returned to the surface through an inner tube and collected for later use. The drilling mechanism is a pneumatic reciprocating piston known as a hammer driving a tungsten carbide button drill bit to drill a borehole into the stratum. In RC drilling, compressed air is pumped into a side inlet, blown down the outer shell of a dual-wall pipe, and drives the hammer and bit to crush the rock. Once the air hits the drill bit, it flushes and cools the bit, and also creates a pressure differential that forces the air and cuttings up the center of the drill string and into the inner tube. Air and drilling cutting are then passed through the inner rod and sucked back up, through the top drive, and into a cyclone ampler. then, the rock and water are separated by the cyclone at the top, and the rock is deposited in a sample collection container.
Our Advantages of Reverse Circulation Well Drilling:
● Mitigates air loss into sensitive formations;
● Requires less air to evacuate cuttings;
● Efficient removal of large cuttings cause less wear on tools and faster penetration rates;
● Ultimate control of cuttings when discharged at the surface;
● Energy-efficient and environmentally less impactful to the site.
RC hammer specification:
Halco Reverse Circulation RC Hammers:
| size | 4" | 4½" |
| Hammer | RC400 | RC500 |
Sandvik Reverse Circulation RC Hammers:
Available | RE531 | RE040 |
Obsolete | RE035 | RE004 |

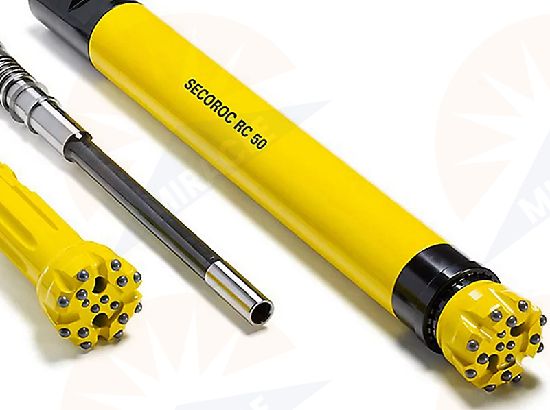

Epiroc Reverse Circulation RC Hammers:
Secoroc COP RC45 | Secoroc COP RC50 |
There are more than 10 sizes of Reverse Circulation DTH Hammer with drilling diameter ranging from 104mm to 370mm.↓

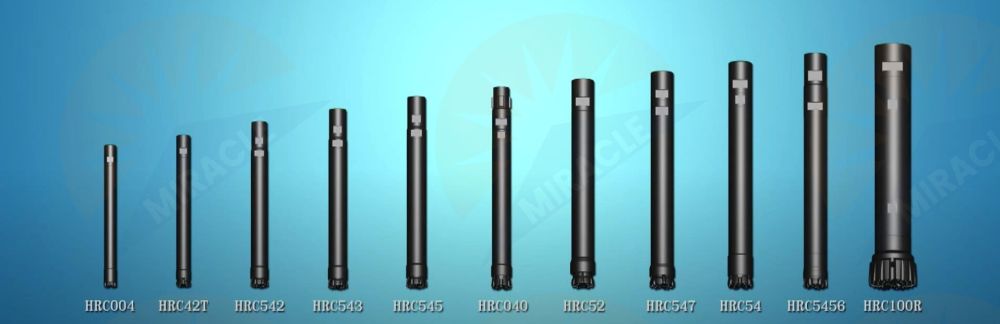

MIRACLE'S Reverse Circulation Hammers Specifications
Hammer Size | Hammer | Bit Shank | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure | |
|---|---|---|---|---|---|---|---|---|---|
3" | RE531 | RE531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.0-3.0Mpa | |
3" | RE035 | RE035 | 84-105 | 85 | 1075 | 35 | 3" Remet | 1.0-3.0Mpa | |
4 1/2" | RE004 | RE004 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa | |
4 1/2" | RE540 | RE540 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa | |
5" | RE040 | RE040 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa | |
5" | RE542 | RE542 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa | |
5" | RE543 | RE543 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa | |
5" | RE545 | RE545 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa | |
5 1/2" | RE547 | RE547 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa | |
5 1/2" | RE052 | RE052 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa | |
5 3/4" | RE054 | RE054 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa | |
5 3/4" | RE140 | RE140 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa | |
5" | PR40 | PR40 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa | |

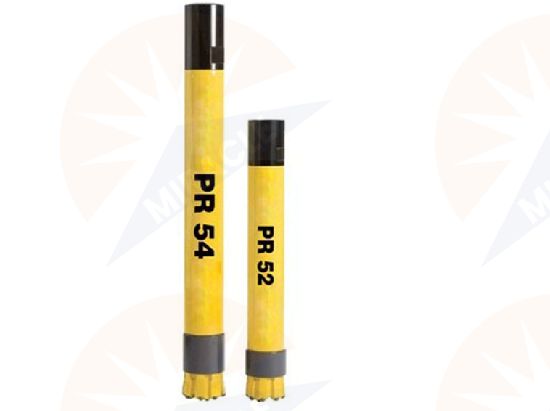

5 1/2" | PR52 | PR52 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa | |
5 1/2" | PR52R | PR52/PR52R | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa | |
5 1/2" | PR54 | PR54 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa | |
6" | MX5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa | |
6"~6 1/2" | RC62/RC62R | RC62/RC62R | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa | |
8" | RC82/RC82R | RC82/RC82R | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa | |
10" | RC100/RC100R | RC100/RC100R | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa | |
12" | RC120/RC120R | RC120/RC120R | 280-420 | 278 | 1560 | 350 | As Request | 1.5-3.5Mpa | |
Notes: | |||||||||
Metzke, Remet, DR115, ARD, Matrix thread is available! | |||||||||
Any special type shank of RC Hammer will be available by requests. | |||||||||

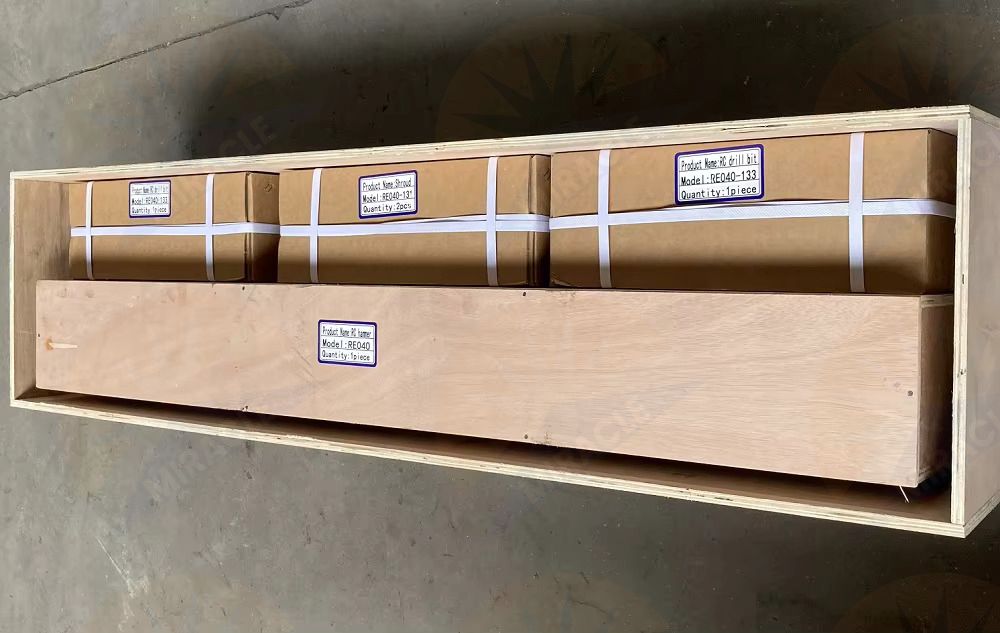

Packing
Using ply-wooden cases and pallet for package to protect the products and avoid the damaging during transportation. Also we can customize package according to your special requests.
We're well-known as one of the leading dth drill tools manufacturers and suppliers in China. Please feel free to buy high quality RC DTH drill hammers at competitive price from our factory. Good service and punctual delivery are available.
Our advantage:
1. Enterprise group combines manufacture and international trade;
2. Strict quality controll system with perfect equipment;
3. High technology enterprise with advanced production equipments;
4. Prompt delivery and all-around after-sales service;
FAQ
A: Are you trading company or manufacturer ?
Q: We are manufacturer.
A: Do you provide samples ?
Q: Yes, of course. We welcome sample order to test and check quality.
A: Can you accept small orders?
Q: We enjoy to cooperate with all clients whatever big or small order.
A: Could you accept OEM & ODM?
Q: Of course, as a manufacturer, OEM & ODM is available, our professional R&D center can help you on the project.
A: How long is your delivery time?
Q: Usually it's about 20 days,depends on your actual quantity.
Any question, pls feel free to contact . Thanks!
