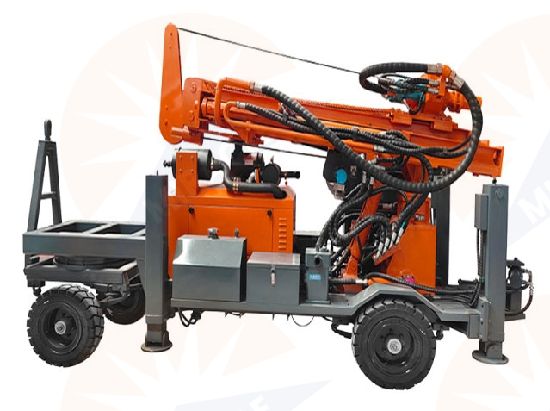

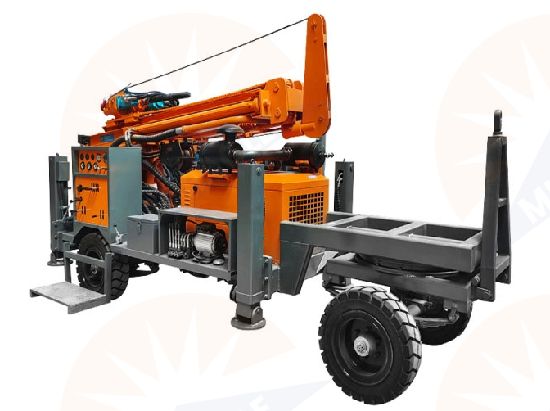

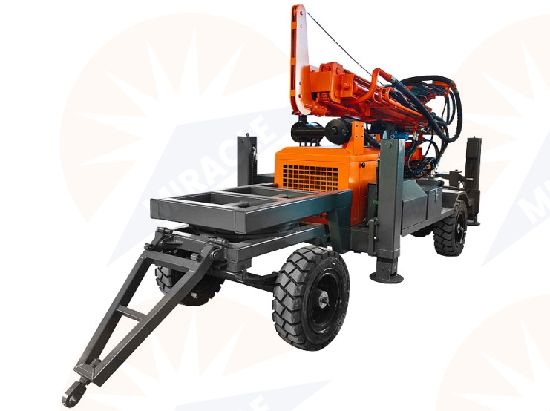

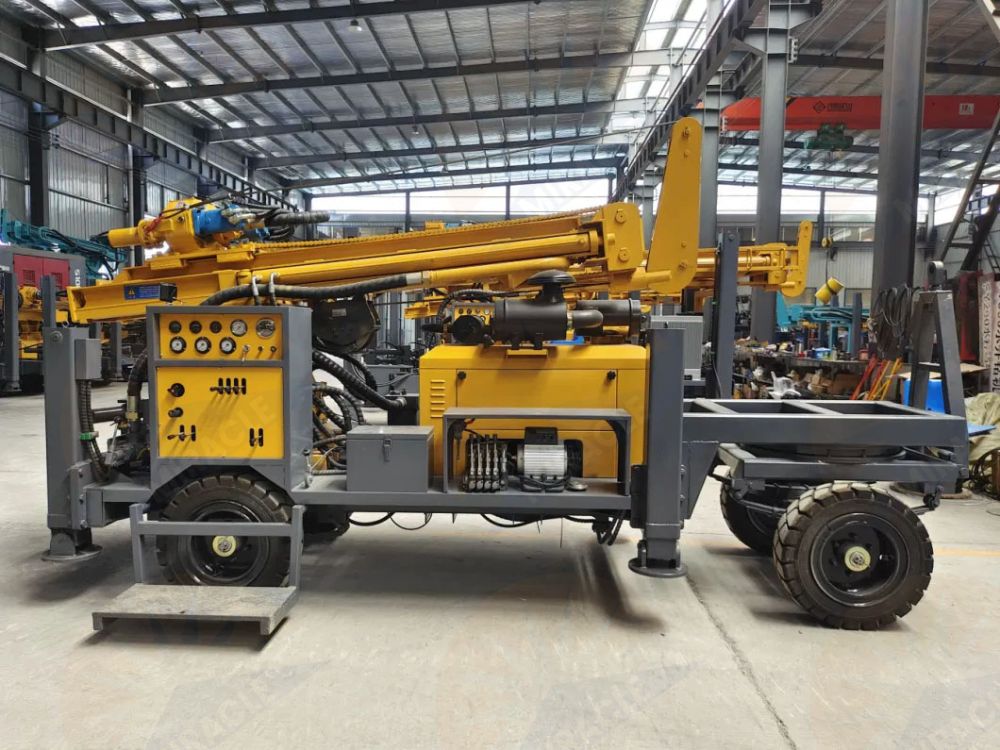

Trailer Rotary Table Drilling Rig Water Well Drilling Rig by Mud Pump by Air Compressor
The rig can create drilling jobs in different strata, borehole diameter can up to 140-254mm. The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.
Detailed parameters
| The weight: | 6.5T | Drill pipe diameter: | Φ76mm Φ89mm |
| The hole diameter: | 140-305mm | Drill pipe lengh: | 1.5m 2.0m 3.0m |
| Drilling depth: | 260m | Rig lifting force: | 15T |
| One-time advance length: | 3.3m | Rapld rise spoed: | 24m/min |
| Walking speed: | 2.5km/h | Fast feeding speed: | 28m/min |
| Climbing angles: | 30Max. | Width of loading: | 2.73m |
| Equipped capacitor: | 70kw | Hoisting force of winch: | 1.5T |
| Using air pressure: | 1.7-3.5MAP | Swing torque: | 4000-5300N.m |
| Air consumption: | 17-31m³/min | Dimension: | 4000*1850*2300mm |
| Swing speed: | 45-70rpm | Hoisting force of winch: | Medium and high windpressure series |
| The penetration efficiency: | 10-35m/h | High leg stroke: | 1.4m |
| The engine brand | Xichal engine | ||
Features:

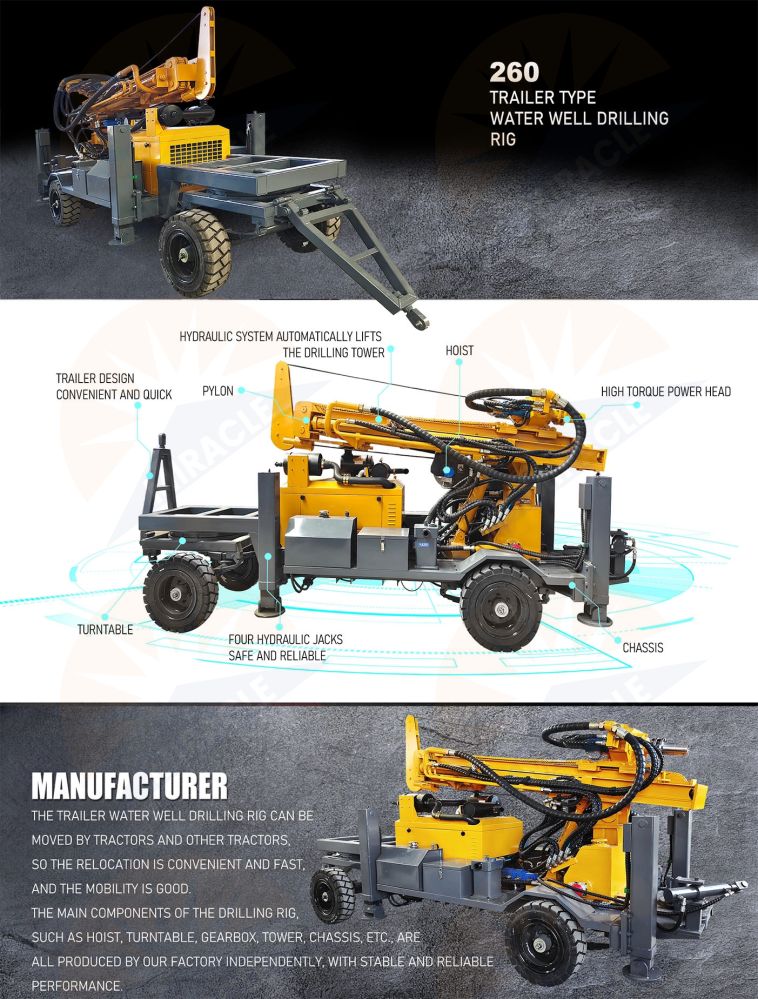

The series of drill rig adopts a trailer crawler chassis and has strong off-road performance. The independent module design allows the drill to be mounted on the truck to increase its mobility. Two speeds of rotating and advancing speed can meet the different needs of soil and rock drilling. Combined positioner, the positioning disc can be adjusted and replaced according to different types of drill pipe and impactor, so as to ensure the accuracy and reliability of the positioning and centering. The hoisting mechanism is convenient for hoisting of drill pipe and impactor, so as to reduce the labor intensity.
This machine can be applied to various strata, used in water well engineering, geothermal well, anchor pile hole and so on, and can be used with follow-pipe drilling. It has the advantages of whole machine hydraulic control, automatic loading and unloading drill pipe, crawler type chassis, large horsepower diesel engine, four hydraulic support leg balance, stronger terrain application ability and so on.
Windlass:1500kg pulling force can assist the driller in loading and unloading drill pipe, drill bit and impactor, which saves time and labor.
Consult customer service to get the lowest price.
Our advantage:
1. Enterprise group combines manufacture and international trade;
2. Strict quality controll system with perfect equipment;
3. High technology enterprise with advanced production equipments;
4. Prompt delivery and all-around after-sales service;
FAQ
A: Are you trading company or manufacturer ?
Q: We are manufacturer.
A: Do you provide samples ?
Q: Yes, of course. We welcome sample order to test and check quality.
A: Can you accept small orders?
Q: We enjoy to cooperate with all clients whatever big or small order.
A: Could you accept OEM & ODM?
Q: Of course, as a manufacturer, OEM & ODM is available, our professional R&D center can help you on the project.
A: How long is your delivery time?
Q: Usually it's about 20 days,depends on your actual quantity.
Any question, pls feel free to contact . Thanks!
