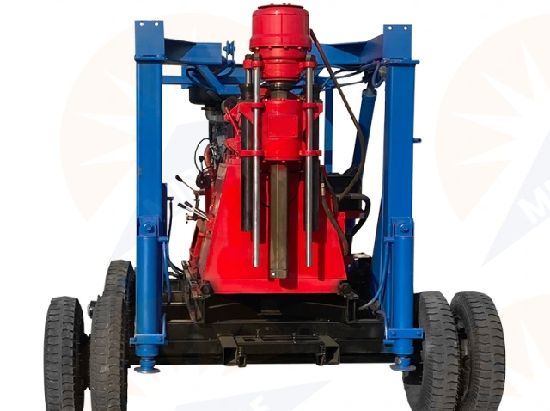

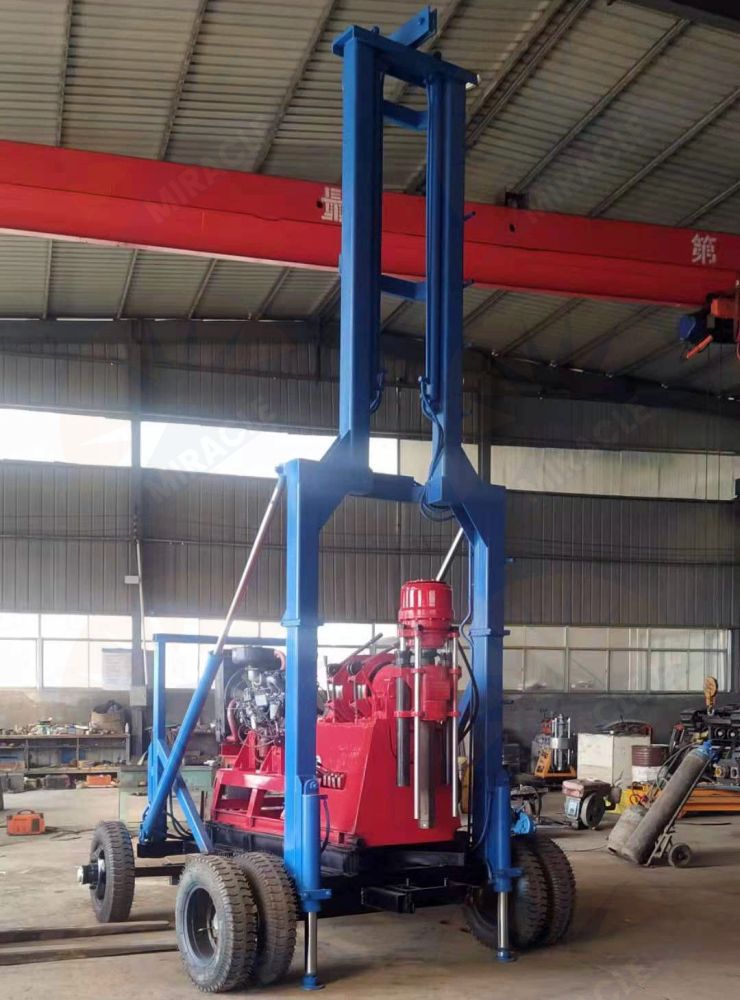

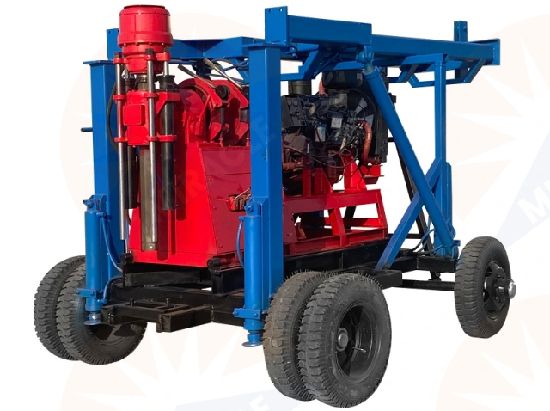

High quality export more than 10 years hydraulic type drilling rig with BW160 mud pump
The drilling rig is a shallow/medium-deep hole spindle type core drilling rig. This machine is mainly used for diamond drilling and cable drilling projects. It is also a core sample project that can be drilled in deep well projects. It uses an automotive transmission, and a heavy-duty diesel engine for power.
Main Parameters | Mud Pump |
| Drilling Depth: 100m 250m 300m 600m | Horizontal Triplex BW-200 mud pump or bigger BW-250 mud pump |
| Drilling DI: 75mm 150mm 200mm 300mm | Displacement: 200L/min |
| Open Hole DI: 300mm | Work Pressure: 4-6Mpa |
| End Hole DI: 75mm | Water Inlet Caliber: 65mm |
| Drilling Rod: Φ60mm | Water To Exit Caliber: 37mm |
| Drilling Angle: 90°-65° | Gear Oil Pump |
| Rotary Spindle | Duplex gear oil pump CBF-F532/16 |
| Spindle Forward Speed: 37-1082r/min | Front Displacement Pressure: 63mL/r 20Mpa |
| Spindle Reverse Speed: 42-190r/min | Behind Displacement Pressure: 25mL/r 20Mpa |
| Spindle Stroke: 600mm | Drilling Rig Power |
| Spindle Inner Diameter: 80mm | Diesel Engine(HP): 42kw |
| Spindle Lifting Capacity: 60KN | Electric Motor: Y180L-4 22KW |
| Main Winch (Drive Hydraulic System) | |
| Single Line Lifting Speed: 0-60m/min | |
| Wireline Rope Diameter: 12.5mm | |
| Tightrope Diameter: 14mm | |
| Hoist Single Line Lifting Capacity: 45KN | |
| Roller Diameter: 200mm | |
| Roller Cubic Measure: 50m |
Features:
1.Stable performance
The whole machine is small in size and easy to move, which is convenient for transportation and installation in small-section tunnels.
2.Reasonable structure
The utility model has the advantages of novel and reasonable structure, fast drilling speed and large diameter of coring samples.
3.Savetimeand effort
Stable working performance, high working efficiency, saving time and effort, and reducing labor costs.
4.Widerangeof uses
It is used in household and factory domestic water well drilling, farmland irrigation wells, installation of water air conditioners, construction site piling, etc.
Our advantage:
1. Enterprise group combines manufacture and international trade;
2. Strict quality controll system with perfect equipment;
3. High technology enterprise with advanced production equipments;
4. Prompt delivery and all-around after-sales service;
FAQ
A: Are you trading company or manufacturer ?
Q: We are manufacturer.
A: Do you provide samples ?
Q: Yes, of course. We welcome sample order to test and check quality.
A: Can you accept small orders?
Q: We enjoy to cooperate with all clients whatever big or small order.
A: Could you accept OEM & ODM?
Q: Of course, as a manufacturer, OEM & ODM is available, our professional R&D center can help you on the project.
A: How long is your delivery time?
Q: Usually it's about 20 days,depends on your actual quantity.
