Reverse circulation drilling (RC) is a fairly simple, fast and efficient sampling method for in-pit grade control while maintaining good sampling quality. The RC drilling method not only prevents cross contamination but also enables a large number of sample bags in a short amount of time. Sample bags are labelled with the same location and depth information,and can be sent to a laboratory immediately after or during drilling.If done correctly, RC drilling will significantly reduce overall drilling costs and environmental impact.
An RC-equipped drill rig can be quickly converted to production drilling. Our rigs support inclined drilling, which makes it easier to find the boundaries of the ore body.
Our reverse circulation RIGS are efficient and fast. Paint the whole rig to protect the rig. The rig has a long service life. Our separator has a drying function so that the sample is taken out in a dry powder.Further analysis yields fast, reliable information about mineral deposits that allows you to selectively pinpoint zones for drilling and blasting for maximum ore recovery and greater profit per ton.
Specification Parameter (2-1):
| Item | RC200 | RC300 | RC500 | CZRC500 |
|---|---|---|---|---|
| The weight | 6T | 7T | 10T | 13T |
| The hole diameter | 140-254mm | 140-325mm | 140-350mm | 140-350mm |
| Drilling depth | 200m | 300m | 500m | |
| One-time advance length | 3.3m | 6.6m | ||
| Walking speed | 2.5km/h | 0-80km/h | ||
| Climbing angles | 30max. | |||
| Equipped capacitor | Quanchai 76kw | Yuchai 110kw | Cummins 132kw | 191kw |
| Using air pressure | 1.7-2.5Mpa | 1.7-3.4Mpa | ||
| Air consumption | 17-31m³/min | 17-36m³/min | 17-42m³/min | 17-36m³/min |
| Swing speed | 45-70rpm | 45-80rpm | 45-130rpm | 66-140rpm |
| The penetration efficiency | 10-35m/h | 15-35m/h | ||
| Drill pipe diameter | Φ89mm Φ102mm | Φ89mm Φ102mm Φ114mm | Φ102mm Φ108mm Φ114mm | |
| Drill pipe length | 1.5m 2.0m 3.0m | 1.5m 2.0m 3.0m 6.0m | ||
| Rig lifting force | 13T | 18T | 26T | |
| Rapid rise speed | 30m/min | 20m/min | ||
| Fast feeding speed | 60m/min | 40m/min | ||
| Width of loading | 2.4m | / | ||
| Hoisting force of winch | 1.5T | 2T | ||
| Swing torque | 4700-6600N.m | 6000-8500N.m | 7500-11500N.m | 7500-10000N.m |
| Dimension | 6000×1750×2350mm | 6000×2000×2550mm | 6000×2000×2550mm | 11000×2700×3100mm |
| Equipped with hammer | High wind pressure series Medium wind pressure series | |||
| High leg stroke | 1.4m | |||

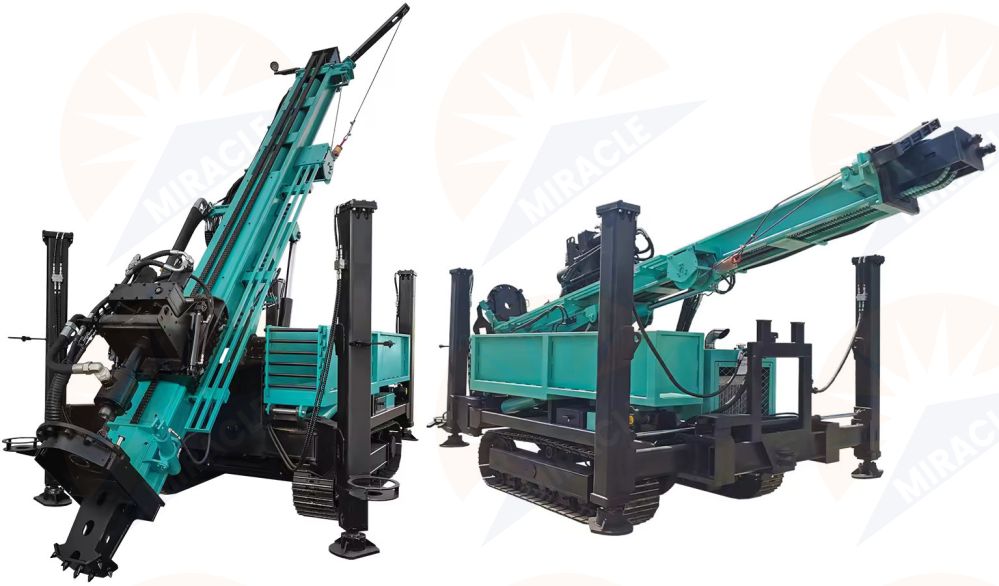

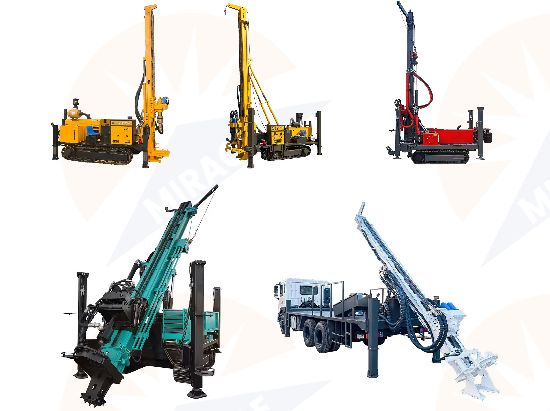

RC200

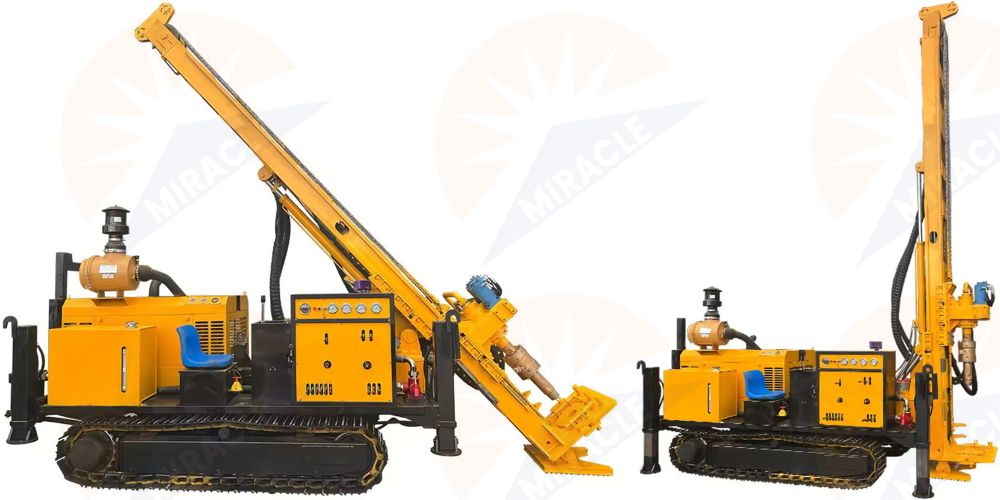

RC300

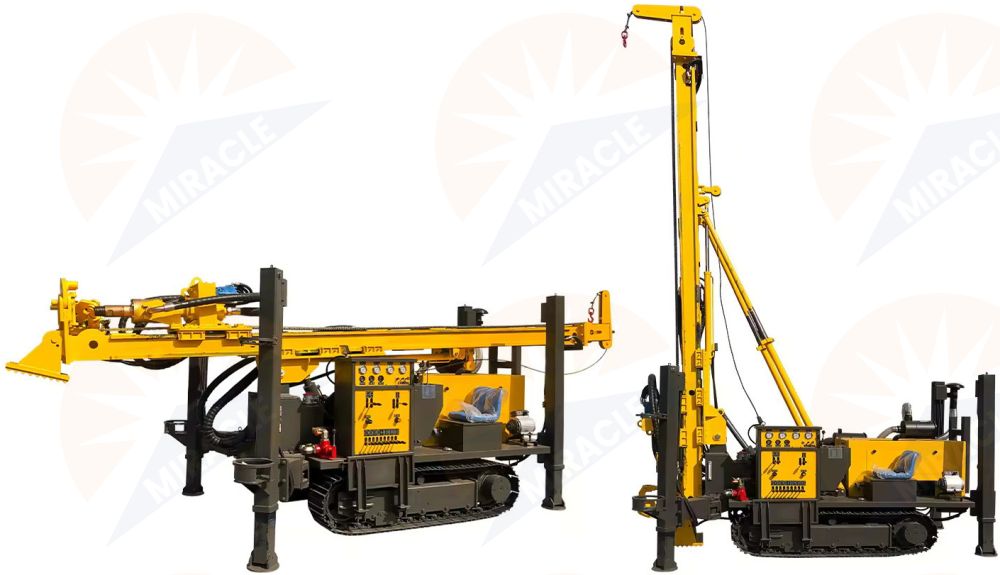

RC500
CZRC500
Features:

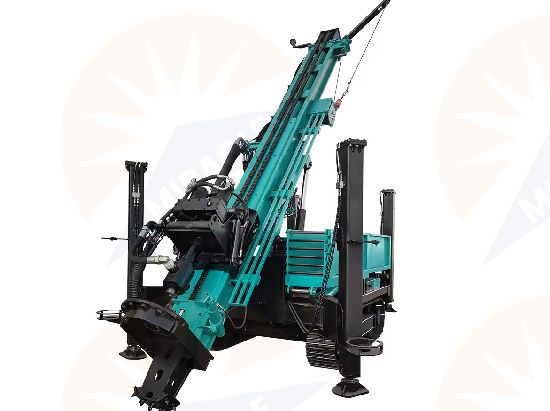

RC-200,RC-300,RC-500,CZRC-500 Reverse Circulation Drilling Rig is a crawler-mounted, compact rig specifically designed for reverse circulation drilling at depths down to 200-500 meters.
1. The latest intelligent laser cutting technology
Cutting workshop introduced the latest laser cutting machine, from the drawing to the com-pletion of the production of tooling all realize intelligence. Ensure that all parts of the machine are handled with precision and detail.
2. Decomposing spray painting process
Always adhere to the decomposition spray painting process, such advantages are: ①.to ensure that each side of the machine is painted; There will be no spray paint surface overflow. ②.adhere to rust removal, oil removal, primer, color paint, top paint and other processes to ensure a high level of product appearance.
3. More user-friendly design

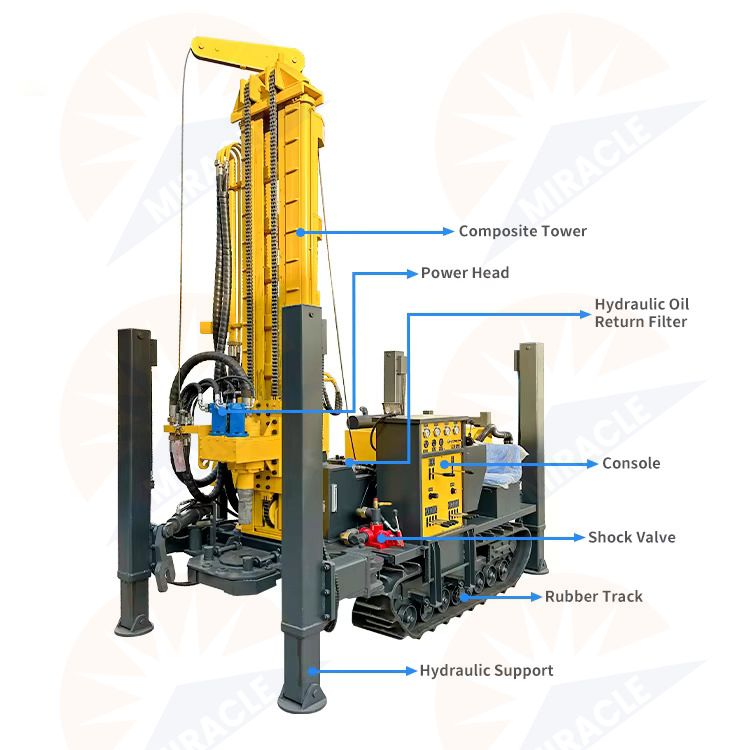

We use a more user-friendly design with a longer lifespan. For example, more than 300 power head bidirectional 6 slider design, 300 power head bidirectional four slider design, more stable; Can quickly disassemble the slider, more conducive to user maintenance; The front and back legs are all equipped with dust cover, longer service life, etc.
Specification Parameter (2-2):
| Item | RC-200B | RC-300B | RC-500B |
|---|---|---|---|
| Drilling capacity: | |||
| Max drilling depth | 200m | 300m | 500m |
| Max drilling diameter | Φ300mm | Φ350mm | Φ400mm |
| Engine: | |||
| Engine brand | Yunnei | Yuchai | Cummins |
| Rated power | 70/4Kw cylinder | 92/6Kw cylinder | 132/6Kw cylinder |
| Feed system: | |||
| Lifting force | 10T | 20T | 26T |
| Speed of fast lifting | 30m/min | ||
| Feeding force | 5.5T | 8T | 10T |
| Speed of fast putting down | 60m/min | ||
| Max feeding stroke | 3600mm | ||
| Rotation system: | |||
| Rotary torque | 6000/3000 N.M | 8000/4000 N.M | 11000/5500 N.M |
| Rotary speed | 70/140 r/min | ||
| Travelling system: | |||
| Travel speed | 2.5Km/h | ||
| Grade ability | 21° | ||
| Tool winch: | |||
| Lifting force | 1.1T | ||
| Drilling rods diameter: | 76/89mm | 89/102mm | 89/102mm |
| Transport dimension: | 5760x1750x2400mm | 5760x1800x2440mm | 6860x2200x2620mm |
| Machine weight: | 5.5T | 8T | 10.5T |
| Optional accessories: | Welding generator,Foam pump,Second winch etc. | ||

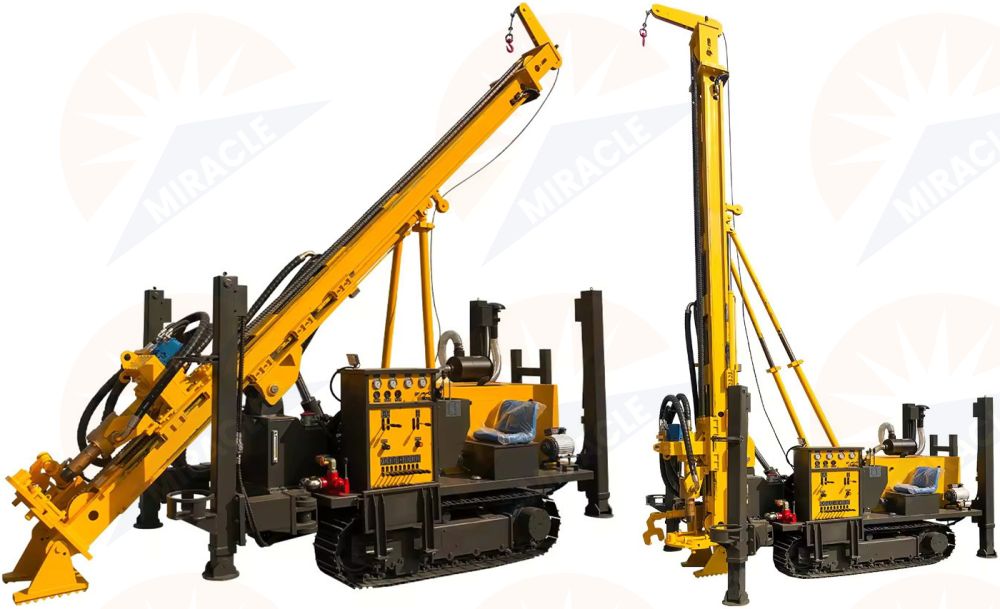

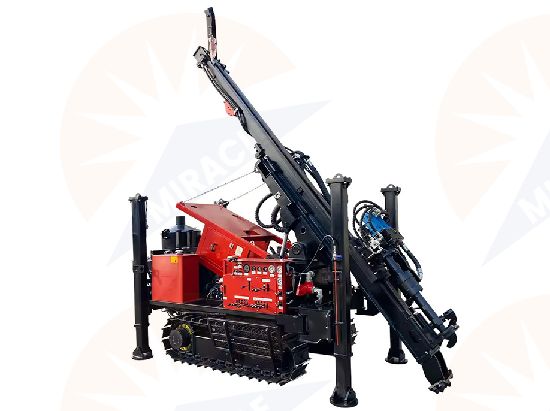

RC200B

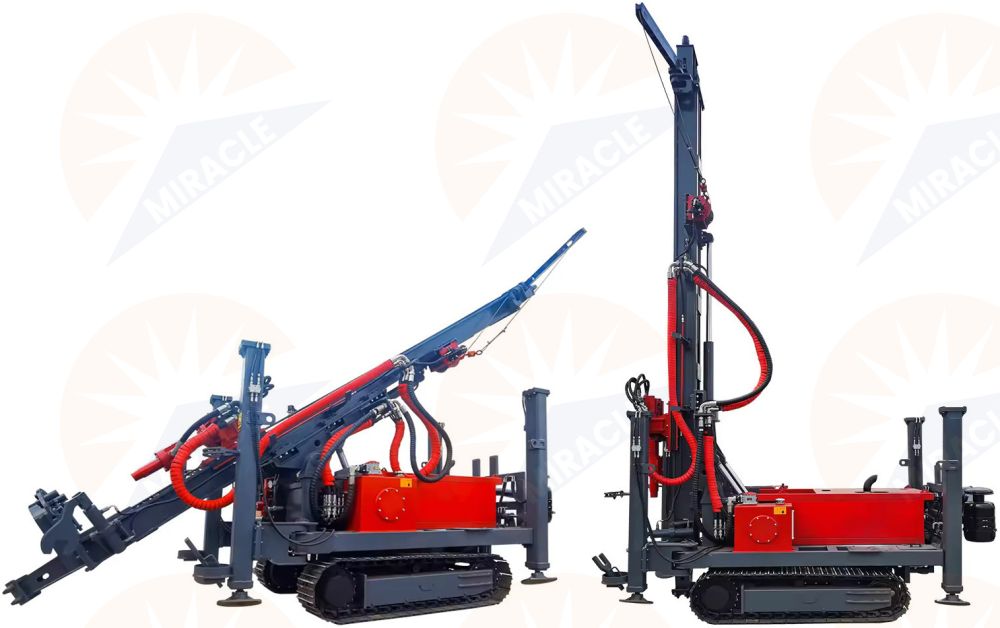

RC300B
RC500B

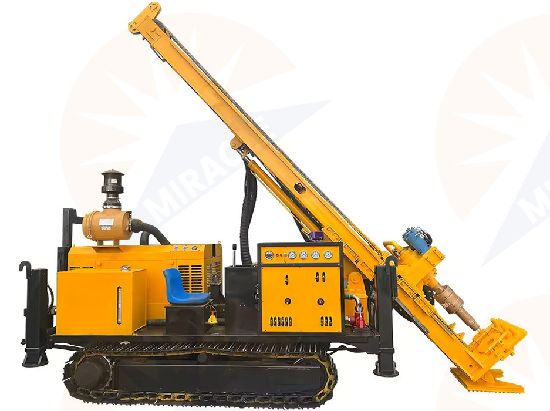

RC200B, RC300B,RC500B Reverse Circulation Drilling Rig is a crawler-mounted, compact rig specifically designed for reverse circulation drilling at depths down to 200-500 meters.

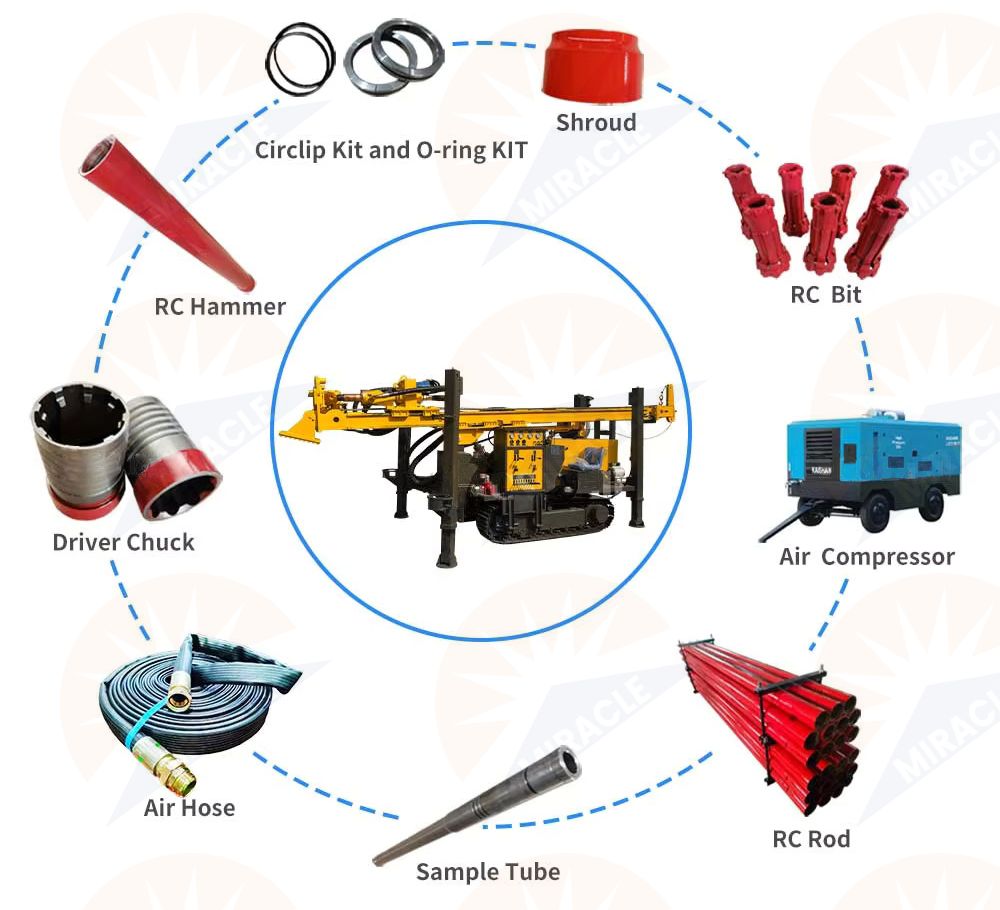

Drilling Accessories

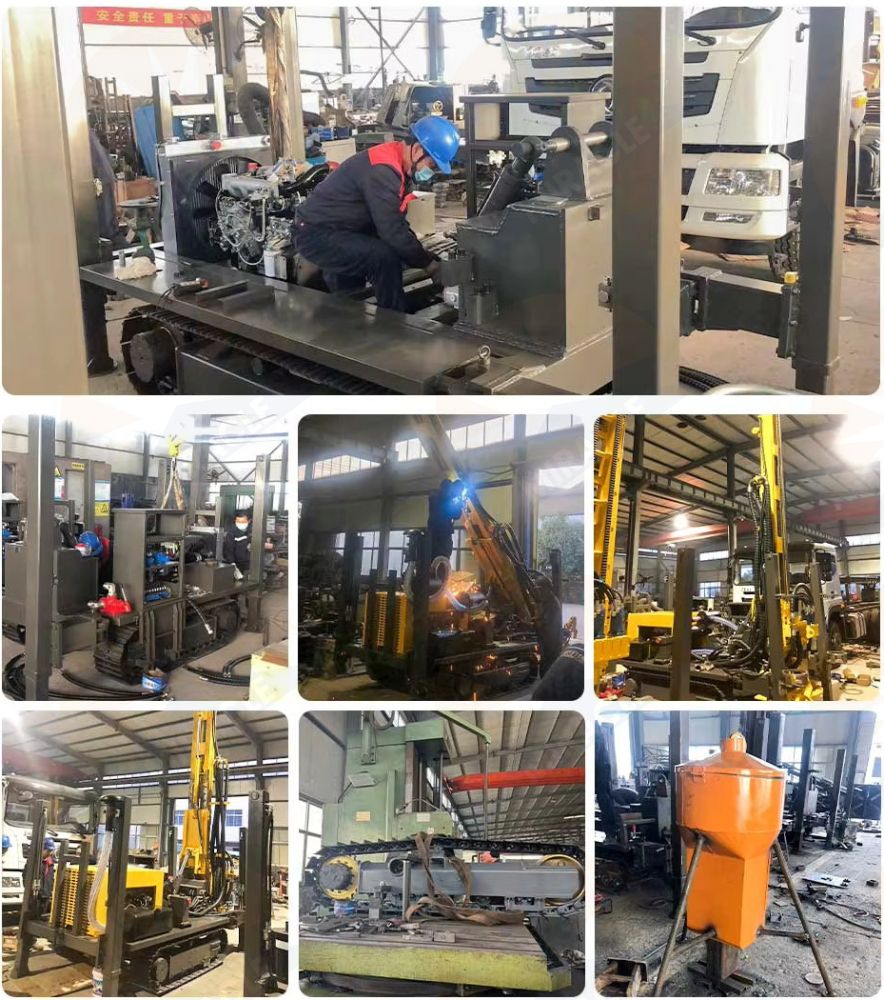

Production Field
Product Advantages
1. Energy saving. Low tower design, can drill indoor and outdoor.
2. Patented product, unique design and simple drilling structure.
3. Easy to transport and can learn how to handle the machine in short time.
4. Assure easily operation and long life service life.
Note:
1.The pneumatic drilling rig is multifunction, with different configurations suitable for different geologies. We can accept customization.

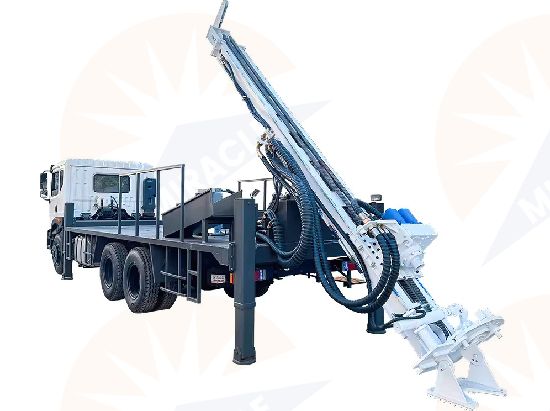

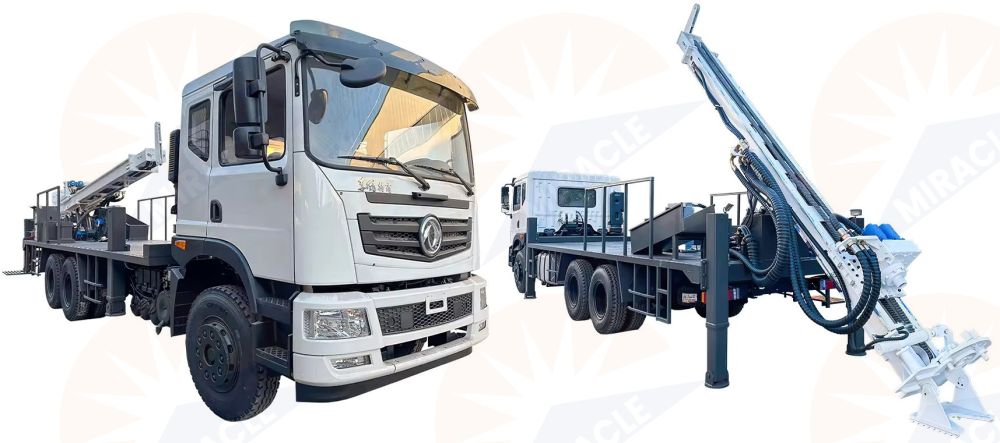

2.This drilling rig needs to be used with an air compressor. If you want to buy an air compressor at the same time, Please tell us your drilling depth and diameter. And we will give the corresponding recommendation. We can also put the drilling rig on a truck mounted chassis. Our engineers will help you get what you want.
Our advantage:
1. Enterprise group combines manufacture and international trade;
2. Strict quality controll system with perfect equipment;
3. High technology enterprise with advanced production equipments;
4. Prompt delivery and all-around after-sales service;
FAQ
A: Are you trading company or manufacturer ?
Q: We are manufacturer.
A: Do you provide samples ?
Q: Yes, of course. We welcome sample order to test and check quality.
A: Can you accept small orders?
Q: We enjoy to cooperate with all clients whatever big or small order.
A: Could you accept OEM & ODM?
Q: Of course, as a manufacturer, OEM & ODM is available, our professional R&D center can help you on the project.
A: How long is your delivery time?
Q: Usually it's about 20 days,depends on your actual quantity.
Any question, pls feel free to contact . Thanks!
