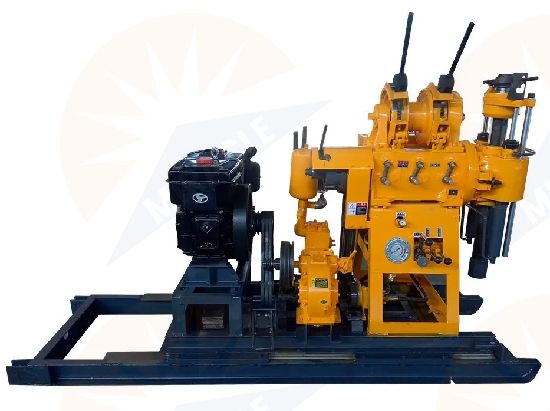

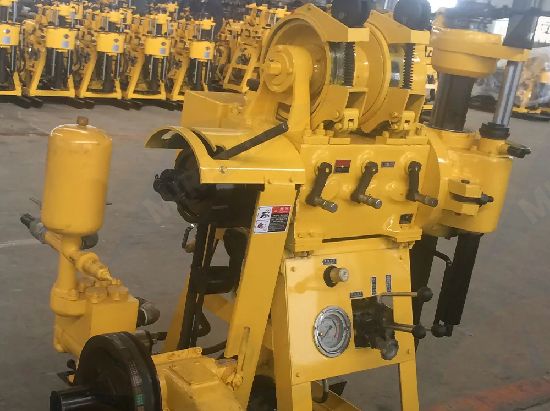

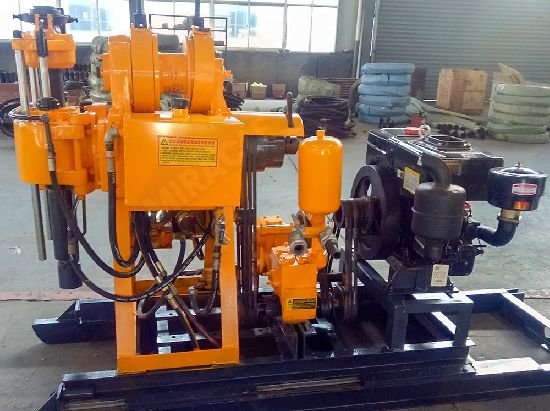

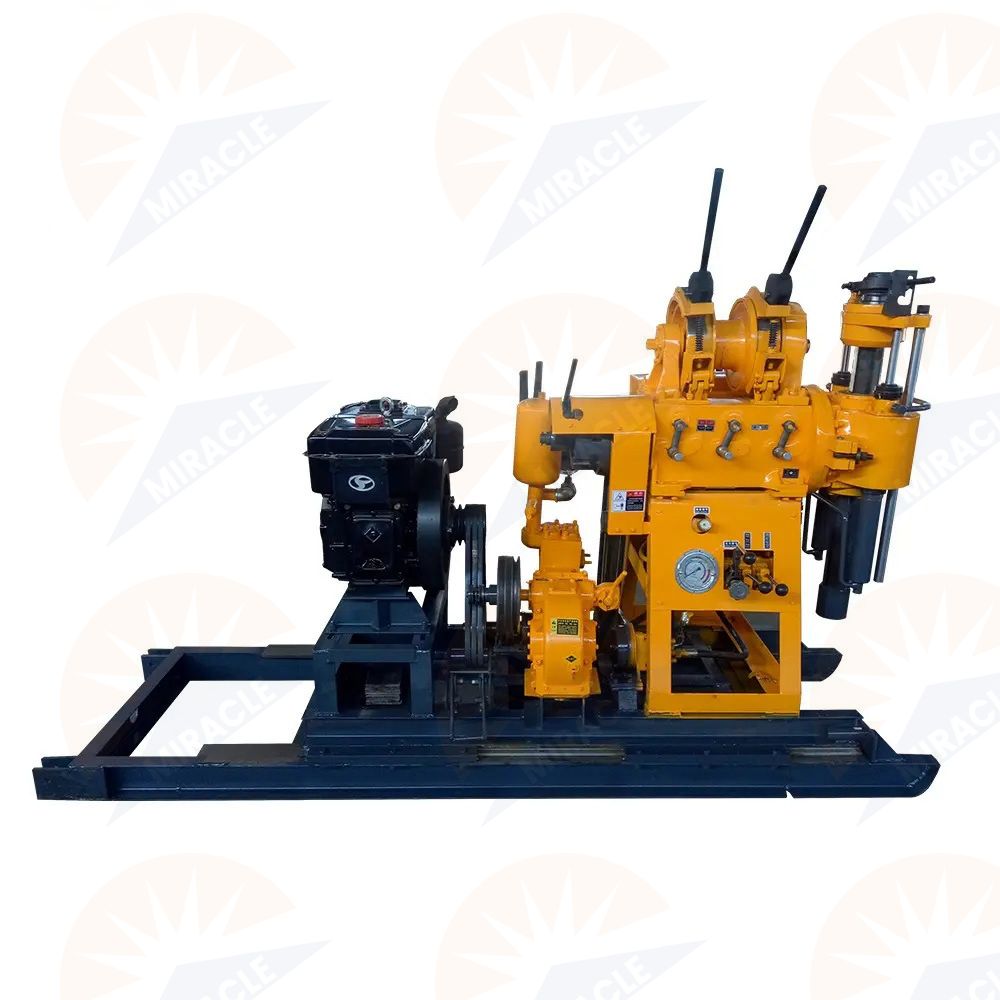

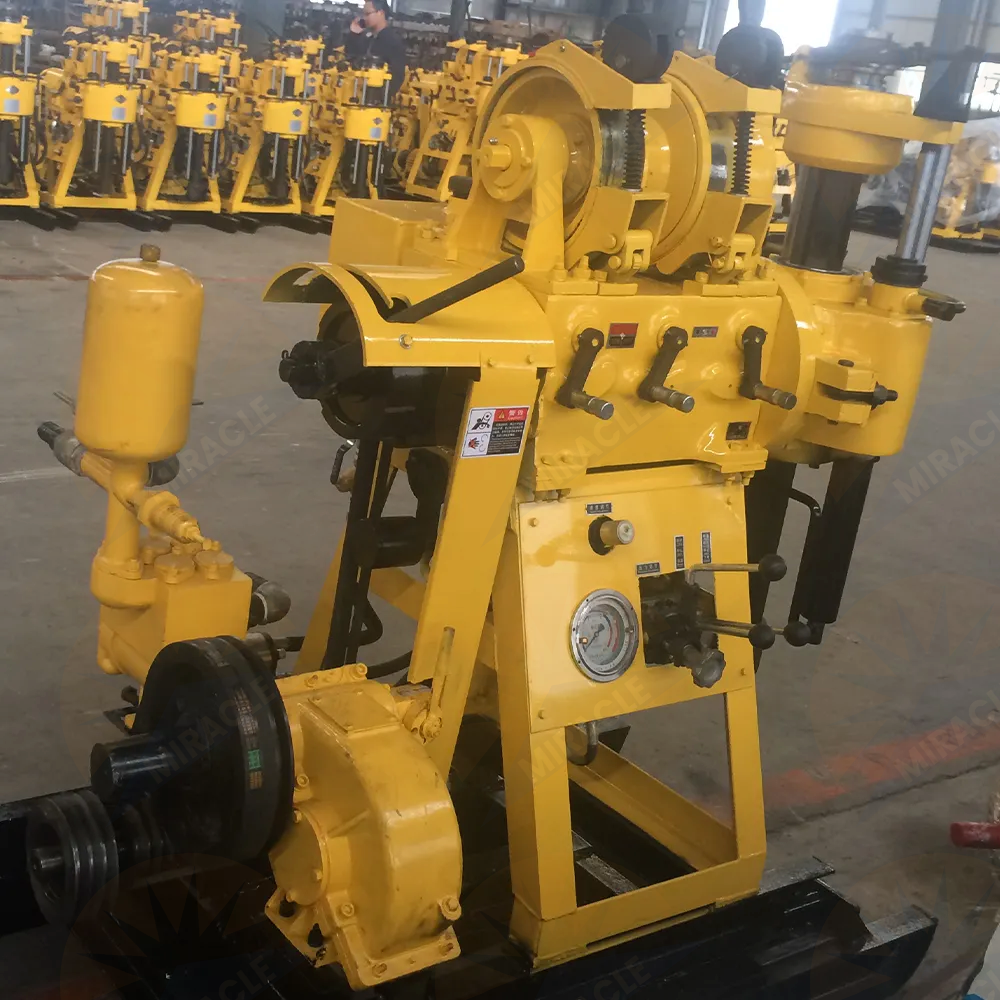

CS-130YY Double Rotary Head Drilling Rig Hydraulic Earth Drilling Equipment Core Drill for Mining
The Scope Of Application:
1. This drilling rig is suitable for drilling projects such as water well drilling, general survey exploration, geophysical exploration, road and building exploration, and blasting holes.
2. Alloy, diamond and composite drill bits can be used for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.

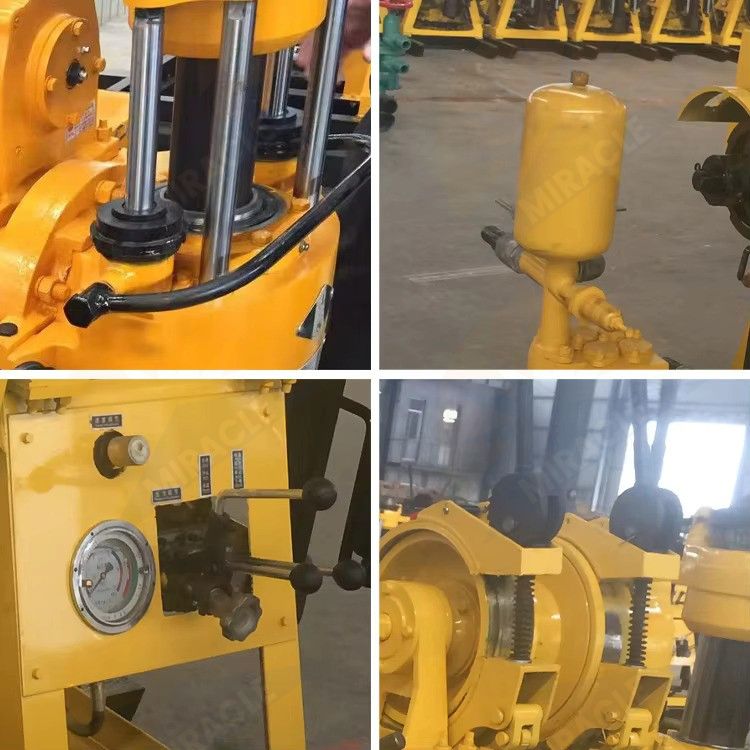

Main Feature:
1. Equipped with hydraulic automatic feeding mechanism, which improves drilling efficiency and reduces labor intensity of workers.
2. The ball clamping mechanism is used instead of the chuck, which can implement non-stop downturning, which is easy to operate, safe and reliable.
3. The winch is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impact
4. The four sets of bearings of the vertical shaft box are positioned to ensure that the gyrator has sufficient rigidity to cope with complex geological conditions such as gravel layers and pebble layers.
5. This machine adopts the taper clutch of national patent technology, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free.
CS-130YY
| Machine Specification | Drilling Rig |
| Drilling Depth: 130m | Rated Load: 2T |
| Max Drilling Diameter: Φ75-220mm | Effective Height: 6m |
| Drilling Rod Diameter: Φ50mm | Tower Leg Specifications: 73mm |
| Drilling Rod: 53/59*4200mm | Mud Pump |
| Drilling Angle: 90°～75° | Mud Pump Model: BW95 |
| Supporting Power (Diesel Engine): 13.2/2200kW/r/min | Flow: 95L/min |
| Vertical shaft | Max Pressure: 1.2 Mpa |
| Vertical Shaft Speed: 142, 285, 570 r/min | Number Of Reciprocations: 93 times/min |
| Vertical Axis Travel: 450mm | Suction Pipe Diameter: Φ51mm*4.5m |
| Hoist | Outlet High Pressure Pipe Diameter: Φ32mm*6m |
| Single Rope Lifting Speed: 0.41 0.82 1.64m/s | Weight / Size: 920kg / 2400*950*1400mm |
| Roll Diameter: Φ220mm | |
| Wire Rope Diameter: Φ9.3mm | |
| Wire Rope Capacity: 27m | |
| Single Rope Lift: 9.6kN |

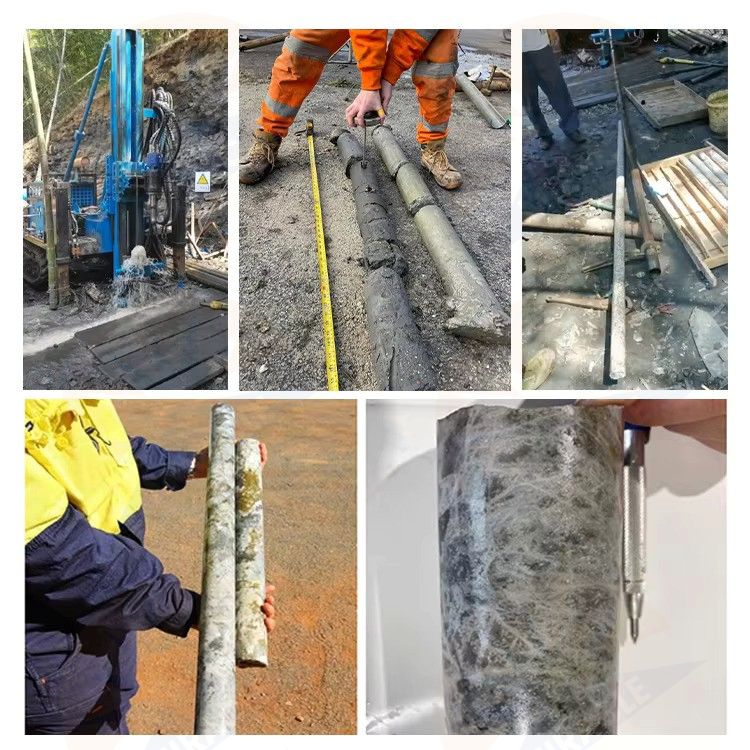

Product Application

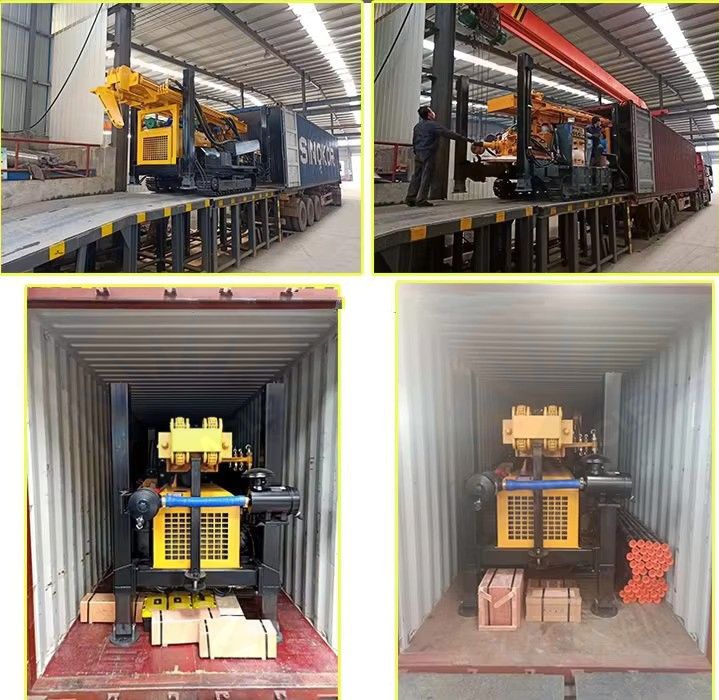

Packing & Delivery
We're well-known as one of the leading dth drill tools manufacturers and suppliers in China. Please feel free to buy high quality dth drill hammers at competitive price from our factory. Good service and punctual delivery are available.
Our advantage:
1. Enterprise group combines manufacture and international trade;
2. Strict quality controll system with perfect equipment;
3. High technology enterprise with advanced production equipments;
4. Prompt delivery and all-around after-sales service;
FAQ
A: Are you trading company or manufacturer ?
Q: We are manufacturer.
A: Do you provide samples ?
Q: Yes, of course. We welcome sample order to test and check quality.
A: Can you accept small orders?
Q: We enjoy to cooperate with all clients whatever big or small order.
A: Could you accept OEM & ODM?
Q: Of course, as a manufacturer, OEM & ODM is available, our professional R&D center can help you on the project.
A: How long is your delivery time?
Q: Usually it's about 20 days,depends on your actual quantity.
Any question, pls feel free to contact . Thanks!
