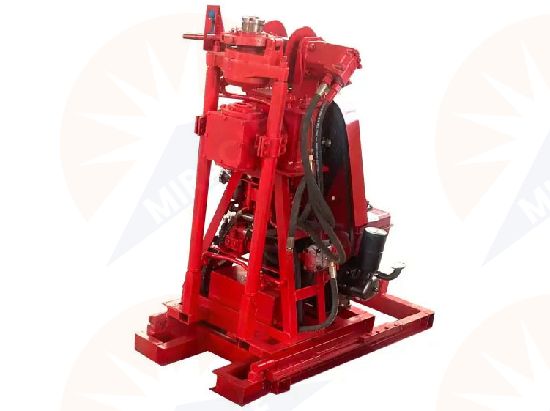

50m hydraulic portable drilling rig
50m hydraulic portable drilling rig is a small sampling drilling equipment suitable for plains, mountainous areas and areas with inconvenient transportation and energy. It is now widely used in railway, water conservancy and other construction projects, as well as geological core drilling and small grouting holes in wild mountainous areas.
Main Parameters |
|---|
Drilling Diameter: 75mm |
Drilling Depth: 50m |
Drill Pipe: 42mm |
Vertical Shaft Speed: 70-650rmp(1-3 gear) |
Reverse Speed: 50-130rmp(R gear) |
Hoist Pulling Force: 500kg |
Cylinder Stroke: 200mm |
Move Itinerary: 600mm |
Host Power(Diesel Engine): R180 |
Rig Weight: 340kg |
Rig Size: 1400*950*1250mm |
Features:
1.Equipped with double-cylinder hydraulic feeding system, fast drilling speed and high work efficiency.
2.The drilling rig is equipped with a fixed clamping mechanism and an integrated main rod, no drilling tower is required, and the work is convenient.
3.Equipped with 4-speed transmission system.
4.The handle is centralized, easy to operate, safe and feasible.
5.Equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient to grasp the situation in the hole.
Our advantage:
1. Enterprise group combines manufacture and international trade;
2. Strict quality controll system with perfect equipment;
3. High technology enterprise with advanced production equipments;
4. Prompt delivery and all-around after-sales service;
FAQ
A: Are you trading company or manufacturer ?
Q: We are manufacturer.
A: Do you provide samples ?
Q: Yes, of course. We welcome sample order to test and check quality.
A: Can you accept small orders?
Q: We enjoy to cooperate with all clients whatever big or small order.
A: Could you accept OEM & ODM?
Q: Of course, as a manufacturer, OEM & ODM is available, our professional R&D center can help you on the project.
A: How long is your delivery time?
Q: Usually it's about 20 days,depends on your actual quantity.
Any question, pls feel free to contact . Thanks!
