This water well drilling rig is a light, efficient, multi-functional full hydraulic drilling rig. It has the characteristics of advanced structure, convenient use, standardized configuration, short auxiliary time, fast rock drilling speed and low failure rate.
It is widely used in exploration projects such as drilling wells and monitoring wells, and is especially suitable for drilling air-conditioning holes for ground-source heat pumps in urban buildings.
Mainframe technical specifications
Host model | YKMA-150 |
Machine weight | 1.95(T) |
Drilling diameter | 75-254(mm) |
Maximum drilling depth | 160(m) |
One-time advance length | 3.3(m) |
Main engine power | 33(HP) |
Working air pressure | 1.5-2.5 (Mpa) |
Air consumption | 15-30(m³/min) |
Drill rod diameter | 60(mm) |
Drill rod length | 1.5-3(m) |
Lifting force | 8(T) |
Rotation speed | 45-200(rpm) |
Rotation torque | 4500(N.m) |
Dimensions | 4000*1500*2100(mm) |
Adapt to conditions Loose layer and bedrock.
Features:
1. Equipped with 33hp engine with strong power and long service life;
2. Patented design compound boom, double oil cylinder lift, strengthen the tower;
3. (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;
4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
5. The diameter of the hole is large, the hole is deep, and the advancing speed is fast;
6. Drilling rig chassis: Reinforced steel crawler, large chassis, strong and durable, heavy bearing, wide chain plate, large tonnage;

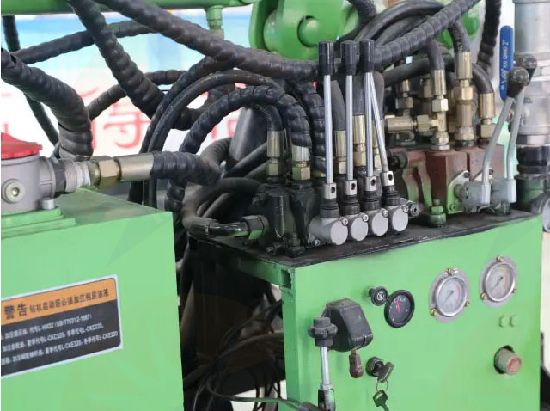

7. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost;

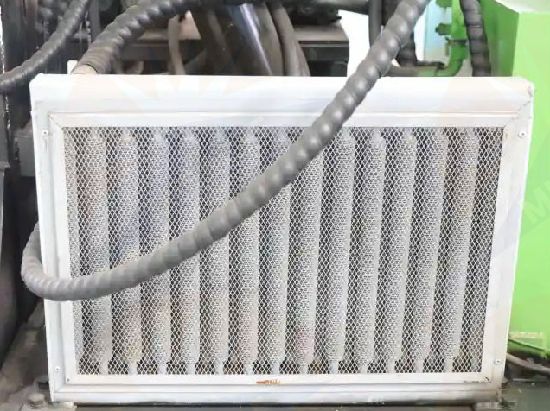

8. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life;
9. Dual system: ①. Air power system with air compressor.②. Mud pump system with mud pump.
