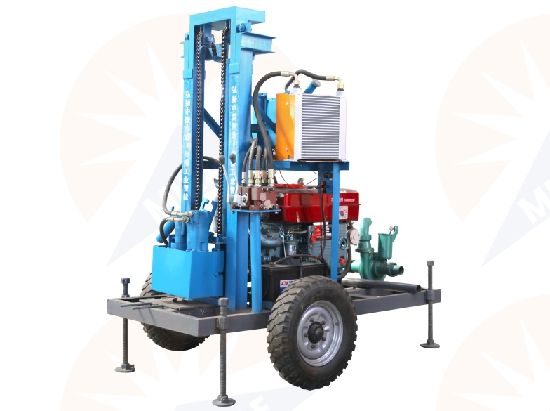

YK-70 Water Well Drilling Rig：
Model: | YK-70 Water Well Drilling Rig |
Drilling depth: | 70m |
The final hole diameter: | 75-152mm |
Drill pipe diameter: | 50mm |
HP: | 22 |
Speed: | 60r/min |
Rig weight: | 2100kg |
Drill size(L*W*H): | 3200*1500*2000mm |
Power: | Diesel engine |
Adapt to the bottom layer: | Mud layer, sand layer, stone can be equipped with diamond bit. |

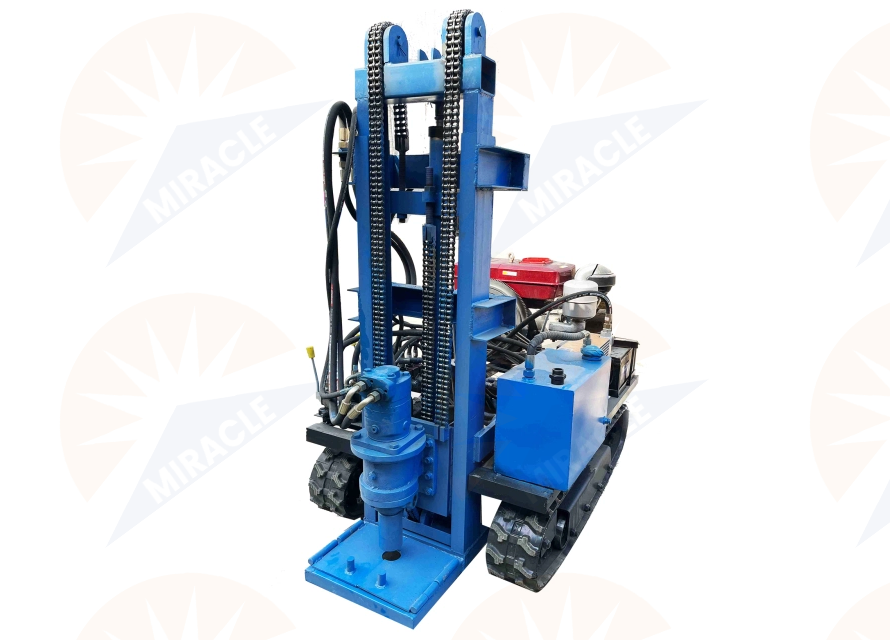

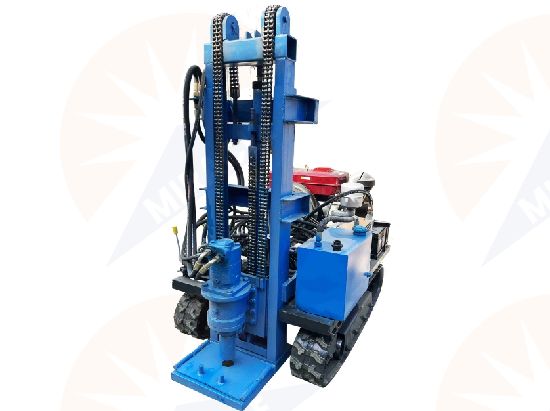

YK-120-1 Water Well Drilling Rig
Product Parameters:
Model: | YK-120-1 Water Well Drilling Rig |
Drilling Depth: | Max.150m |
Showroom Location: | None |
Condition: | New |
Type: | Rotary Drilling Rig |
Power Type: | Diesel |
Usage: | Well Drilling |
Voltage: | - |
Dimension(L*W*H): | 1600*1200*1900mm |
Weight: | 530KG |
Warranty: | 1 Year |
Marketing Type: | Hot Product 2023 |
Machinery Test Report: | Provided |
Video outgoing-inspection: | Provided |
Warranty of core components: | 1 Year |
Core Components: | Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox |
Key Selling Points: | Drill anywhere you want to drill |
Drilling Diameter: | 300mm, 50mm, 75mm, 60mm, 100mm, 200mm |
Mobility: | Move by crawler |
Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction works , Energy & Mining, etc. |

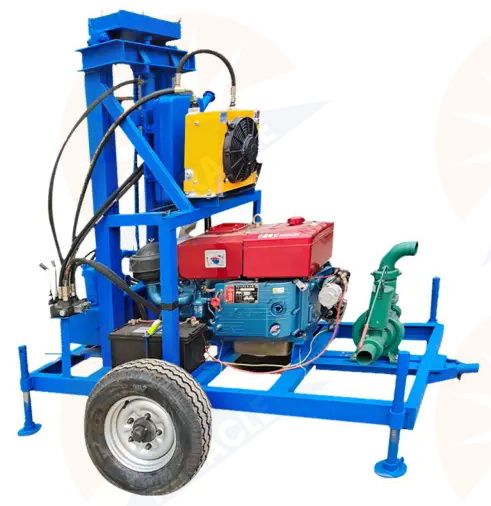

YK-120-2 Water Well Drilling Rig
Product Parameters:
YK-120-2 water well drilling rig | |
Drilling depth: | 50-120m |
Final aperture: | 100-350mm |
Drill pipe diameter: | 50mm |
Water pump body: | 2.2kw |
Horsepower (HP): | 22 |
Speed: | 60rev/min |
Rig weight: | 530kg |
Drill Size (L*W*H): | 1600*1200*1900mm |
Power: | diesel engine |
Drill Specifications: | Alloy drill bit for soil layer Applicable soil layer, sand layer and stone can be equipped with diamond core/coreless drill bit. |
Features:
1.Stable performance
The whole machine is small in size and easy to move, which is convenient for transportation and installation in small-section tunnels.
2.Reasonable structure
The utility model has the advantages of novel and reasonable structure, fast drilling speed and large diameter of coring samples.
3.Savetimeand effort
Stable working performance, high working efficiency, saving time and effort, and reducing labor costs.
4.Widerangeof uses
It is used in household and factory domestic water well drilling, farmland irrigation wells, installation of water air conditioners, construction site piling, etc.
Our advantage:
1. Enterprise group combines manufacture and international trade;
2. Strict quality controll system with perfect equipment;
3. High technology enterprise with advanced production equipments;
4. Prompt delivery and all-around after-sales service;
FAQ
A: Are you trading company or manufacturer ?
Q: We are manufacturer.
A: Do you provide samples ?
Q: Yes, of course. We welcome sample order to test and check quality.
A: Can you accept small orders?
Q: We enjoy to cooperate with all clients whatever big or small order.
A: Could you accept OEM & ODM?
Q: Of course, as a manufacturer, OEM & ODM is available, our professional R&D center can help you on the project.
A: How long is your delivery time?
Q: Usually it's about 20 days,depends on your actual quantity.
Any question, pls feel free to contact . Thanks!
