YK series water well drilling rig is a lightweight, efficient, multi-functional crawler-type fully hydraulic drilling rig. It has the characteristics of advanced structure, easy use, standardized configuration, short auxiliary time, fast rock drilling speed and low failure rate. It is widely used in drilling water wells and monitoring Wells and other exploration projects, especially suitable for drilling ground source heat pump air conditioning holes in urban buildings. This series of drilling rigs uses compressed air down-the-hole drilling and has a high drilling speed in rocks with a Platts hardness of f620.

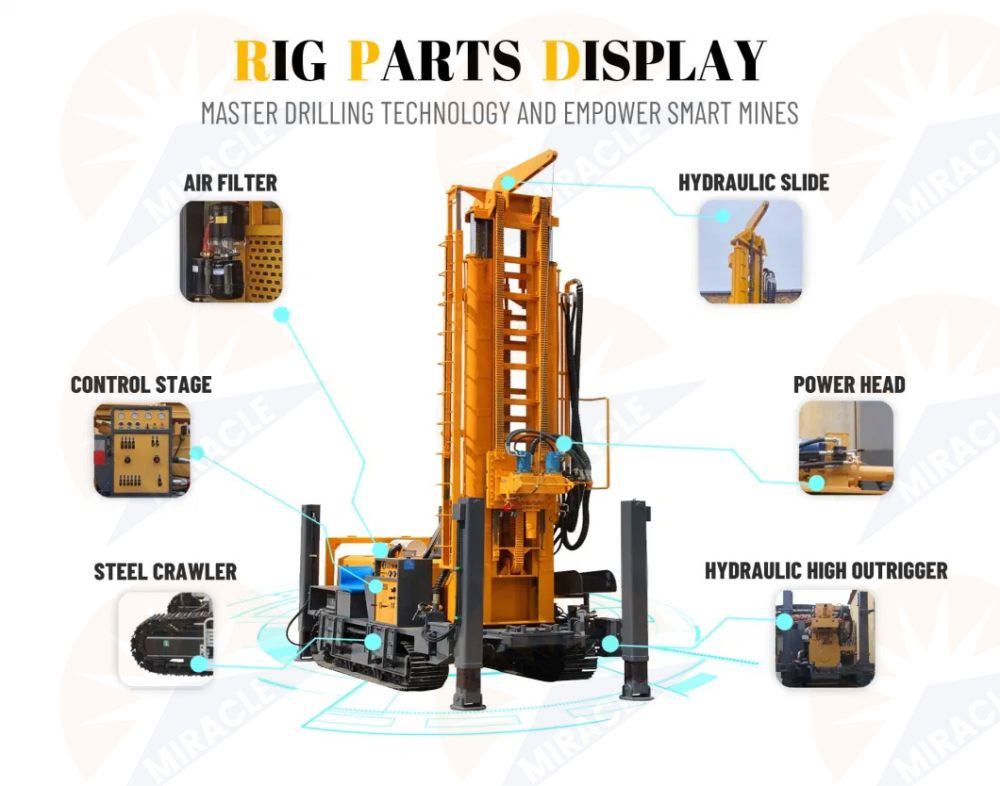

The Rig Features
1.The rig can create drilling jobs in different strata, borehole diameter can up to 140-400mm. The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine.

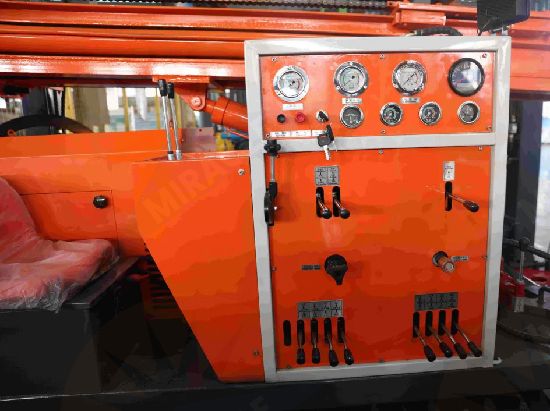

Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.
2.The series of drill rig adopts a excavator crawler chassis and has strong off-road performance. The independent module design allows the drill to be mounted on the truck to increase its mobility. Two speeds of rotating and advancing speed can meet the different needs of soil and rock drilling.
Combined positioner, the positioning disc can be adjusted and replaced according to different types of drill pipe and impactor, so as to ensure the accuracy and reliability of the positioning and centering. The hoisting mechanism is convenient for hoisting of drill pipe and impactor, so as to reduce the labor intensity.
Parameter

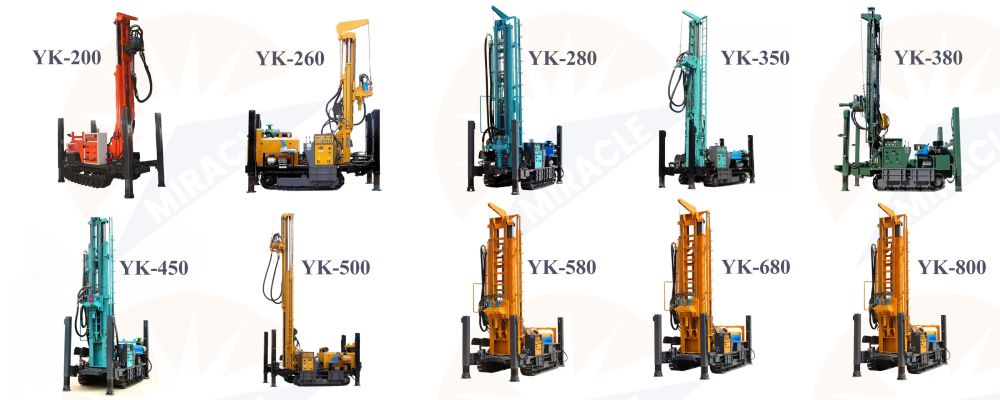

| Item | YK200 | YK260 | YK280 | YK350 | YK380 | YK450 | YK500 | YK580 | YK680 | YK800 |
|---|---|---|---|---|---|---|---|---|---|---|
| The weight | 4.5T | 6.5T | 7.6T | 8.6T | 9.2T | 9.4T | 11.5T | 12T | 13T | |
| The hole diameter | 130-254mm | 140-305mm | 140-325mm | 140-350mm | 140-400mm | |||||
| Drilling depth | 200m | 260m | 280m | 350m | 380m | 450m | 500m | 580m | 680m | 800m |
| One-time advance length | 3.3m | 6.6m | ||||||||
| Walking speed | 2.5km/h | |||||||||
| Climbing angles(Max.) | 30 | |||||||||
| Equipped capacitor | 65kw | 70kw | 75kw | 92kw | 93kw | 103kw | 118kw | 132kw | 153kw | 194kw |
| Using air pressure | 1.7-2.5MAP | 1.7-3.0MAP | 1.7-3.4MAP | 1.7-3.5MAP | ||||||
| Air consumption | 17-31m³/min | 17-36m³/min | 17-42m³/min | |||||||
| Swing speed | 45-65rmp | 45-70rmp | 40-70rmp | 66-135rmp | 50-135rmp | 40-130rmp | 45-140rmp | |||
| The penetration efficiency | 10-35m/h | 15-35m/h | ||||||||
| Drill pipe diameter(mm) | Φ76 Φ89 | Φ89 Φ102 | Φ102 Φ108 Φ114 | Φ102 Φ108 Φ114 Φ117 | ||||||
| Drill pipe lengh | 1.5m 2.0m 3.0m | 1.5m 2.0m 3.0m 6.0m | ||||||||
| Rig lifting force | 12T | 15T | 17T | 22T | 24T | 25T | 26T | 28T | 30T | 36T |
| Rapld rise spoed | 20m/min | 24m/min | 25m/min | 18m/min | 20m/min | |||||
| Fast feeding speed | 40m/min | 28m/min | 30m/min | 33m/min | 40m/min | |||||
| Width of loading | 2.73m | 2.7m | 2.8m | 2.85m | 2.95m | |||||
| Hoisting force of winch | 1.5T | 2T | ||||||||
| Swing torque | 3500-4800N.m | 4000-5300N.m | 4500-6000N.m | 6200-8500N.m | 6500-9000N.m | 7000-9500N.m | 7500-10000N.m | 8500-11000N.m | 8850-13150N.m | 9000-14000N.m |
| Dimension(mm) | 3650*1700*2350 | 4000*1850*2300 | 5900*1850*2360 | 6000*2000*2550 | 5950*2100*2550 | 5950*2100*2600 | 6200*2200*2650 | 6200*2200*2650 | 6300*2300*2650 | 6300*2300*2650 |
| Equipped with hammer | Medium and high wind pressure series | |||||||||
| High leg stroke | 1.7m | 1.4m | 1.6m | 1.7m | ||||||

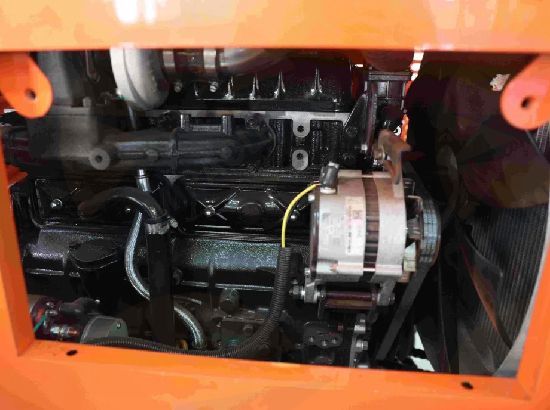

| The engine brand | YunNei engine | Xichal engine | YunNei engine | Yuchai engine (NationalⅢ) | Weichai engine(NationalⅢ) | Yuchai engine | Cummins engine | |||

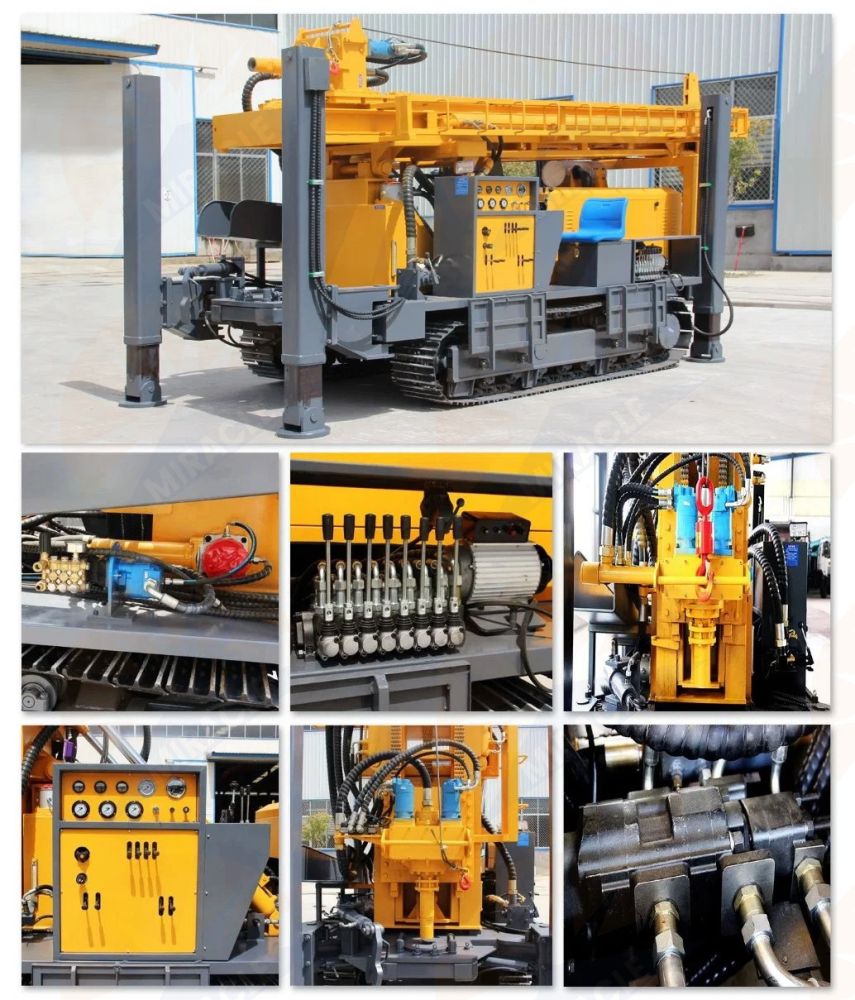

Details Display

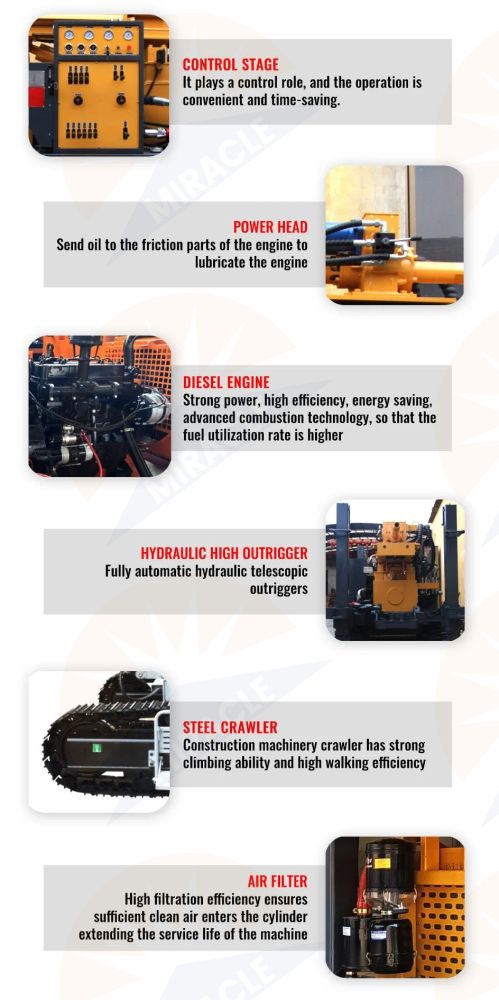

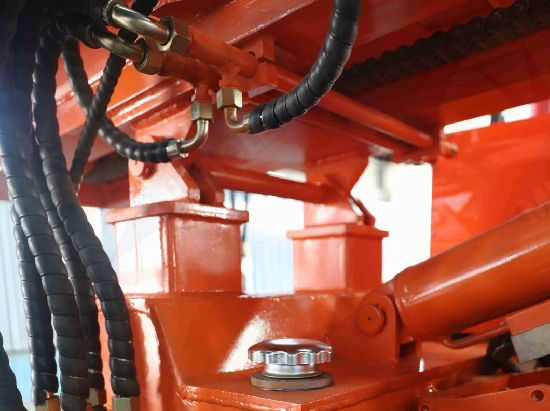

Composite Tower
The patented design of the composite tower, the stroke is 6.6 meters, the double oil cylinder lifts, and the tonnage is large.

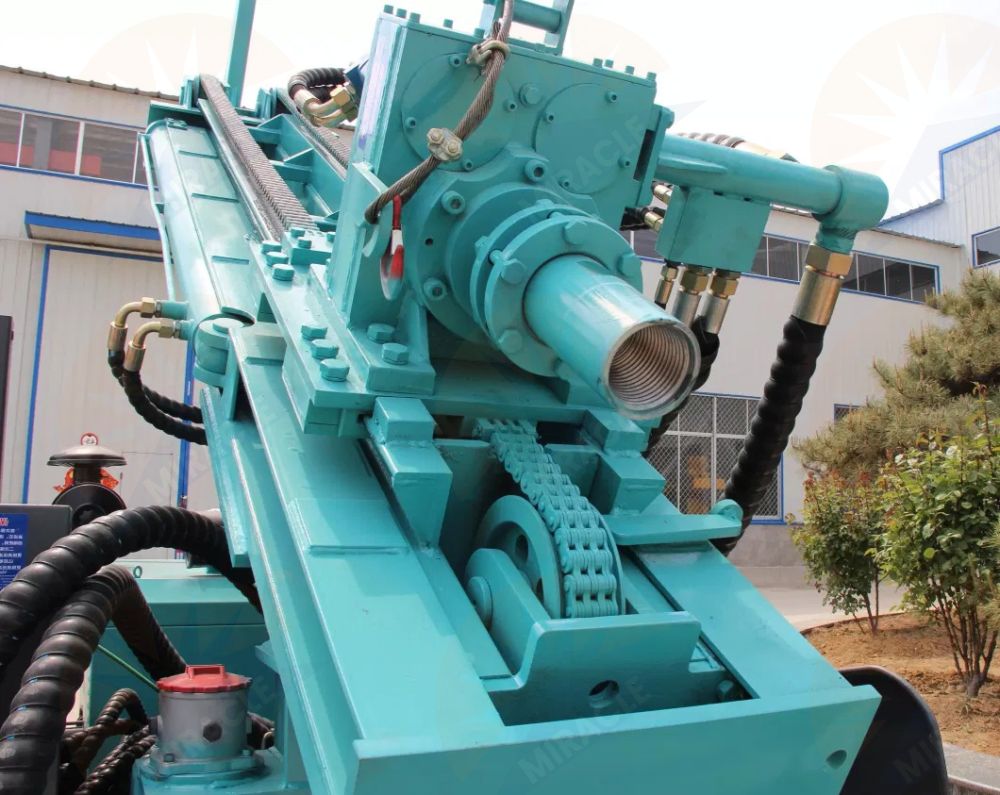

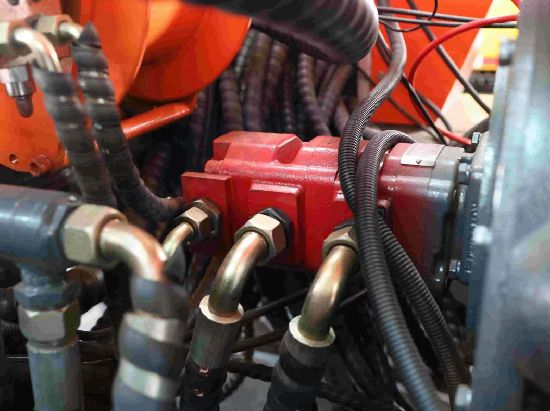

Power head device
The box is integrally formed, and the dual motors provide greater power, greater torque, more durability, and lower maintenance costs.

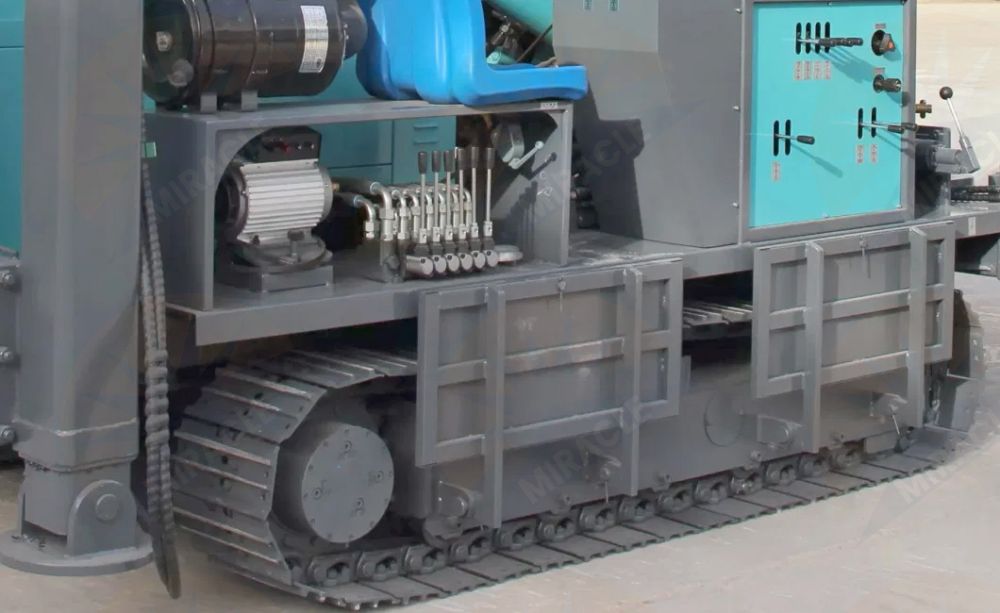

Chassis
The drilling rig walks with a crawler-type self-structure, which is convenient to move. Its steel tracked chassis Drilling rig chassis: professional excavator chassis, durable, strong bearing capacity, wide chain plate, less damage to hard roads.
Windlass
1500kg pulling force can assist the driller in loading and unloading drill pipe, drill bit and impactor, which saves time and labor.

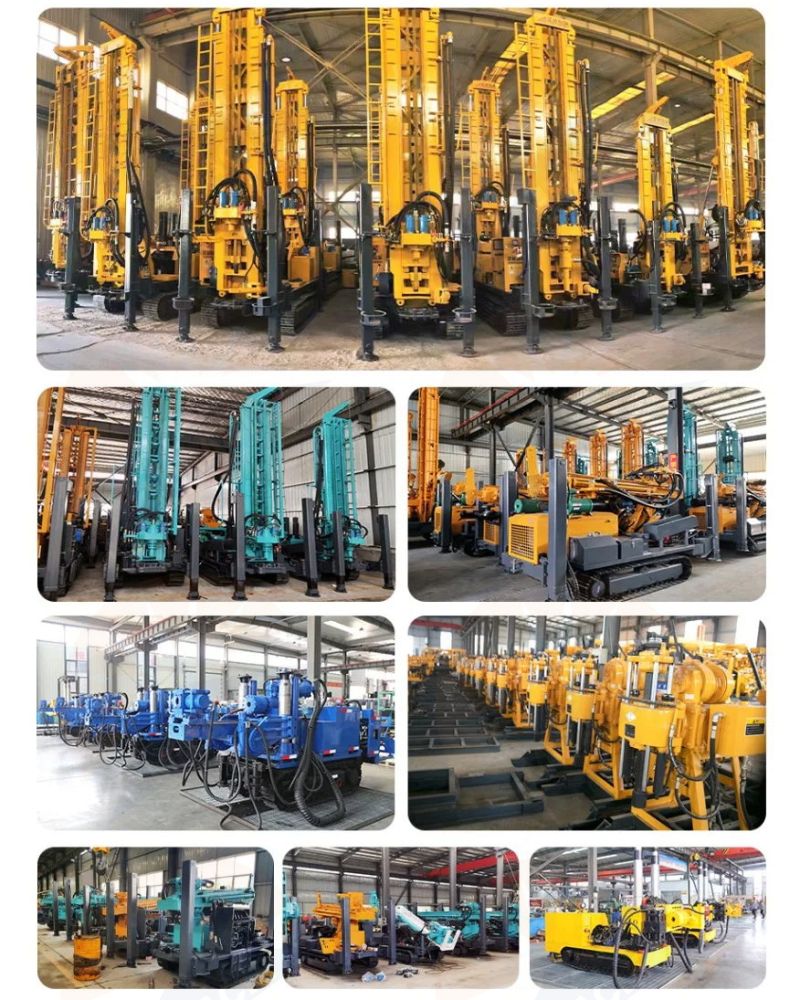

Inventory Display
