Drilling machine use:
Mining, coal, engineering, hydropower, metallurgy, transportation, chemical and other geological survey drilling, highway, railway, tunnel, housing survey, etc., drilling, water exploration, gas exploration drilling;Drilling and grouting of bolts and cables in mines, slopes and foundation pits.

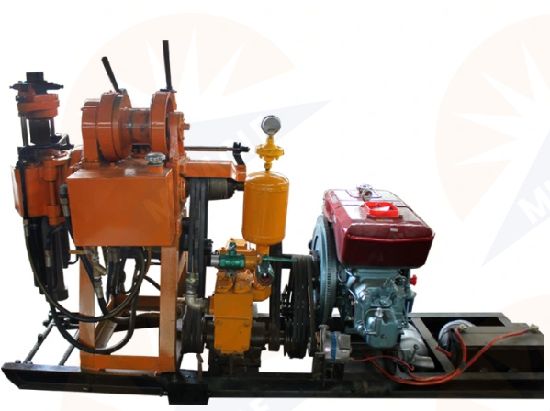

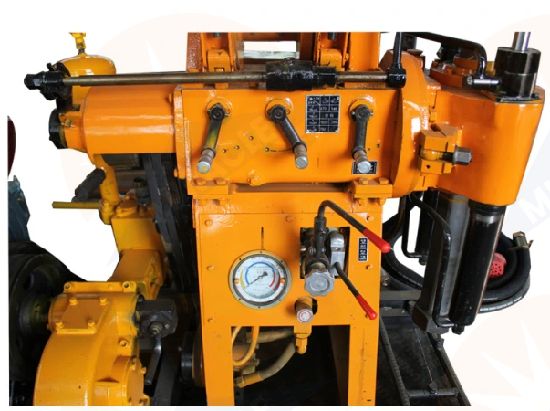

Core Drilling Rig Mini Drill Rig: XY-1
Technical Parameter:
Rig | Mud pump | ||
|---|---|---|---|
Drilling depth: | 100m | Type: | Horizontal single cylinder double acting |
Drill pipe diameter: | 42mm | When equipped with diesel engine: | 95 L/min |
Opening diameter: | 110mm | When equipped with a motor: | 77 Lmm |
End hole diameter: | 75mm | Maximum allowable pressure: | 1.2Mpa |
Drilling inclination: | 90°-75° | Continuous working pressure: | 0.7Mpa |
Rig size (L*W*H): | 1640*1030*1440(mm) | Suction pipe diameter: | 32mm |
Rig weight (without power): | 500kg | Drain pipe diameter: | 25mm |
Transfer itinerary: | 350mm | Oil pump: | - |
Gyrator | - | Model: | YBC-121125 |
Vertical shaft speed (third gear): | 142.285,570 r/min | Nominal pressure: | 12.5Mpa |
Vertical axis travel: | 450mm | Nominal flow: | 8 ml/r |
Maximum moving speed of vertical shaft without load: | 0.05m/s | Nominal speed: | 800-2500 r/min |
Maximum moving speed of vertical shaft without load: | 0.067m/s | Power engine (diesel engine or electric motor) | - |
Maximum feed pressure of vertical shaft: | 15KN | Diesel model: | ZS1100 |
Maximum lifting capacity of vertical shaft: | 25KN | Rated power: | 12.1KW |
Hoist | - | Rated speed: | 2200 r/min |
Maximum lifting force (one speed, single rope) | 10KN | Motor model | Y132IM-4 |
Reel capacity | 27m | Rated power | 7.5KW |
Wire rope diameter | 9.3mm | Rated speed | 1440 r/min |

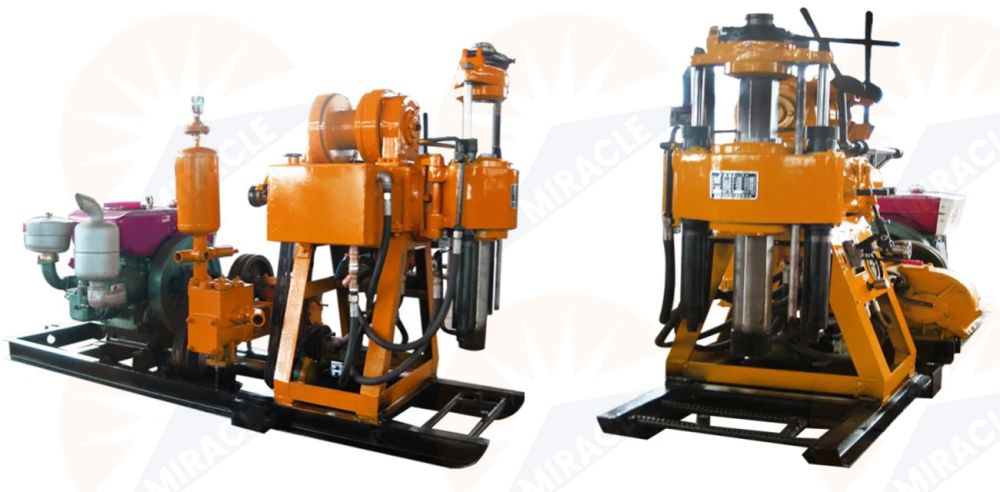

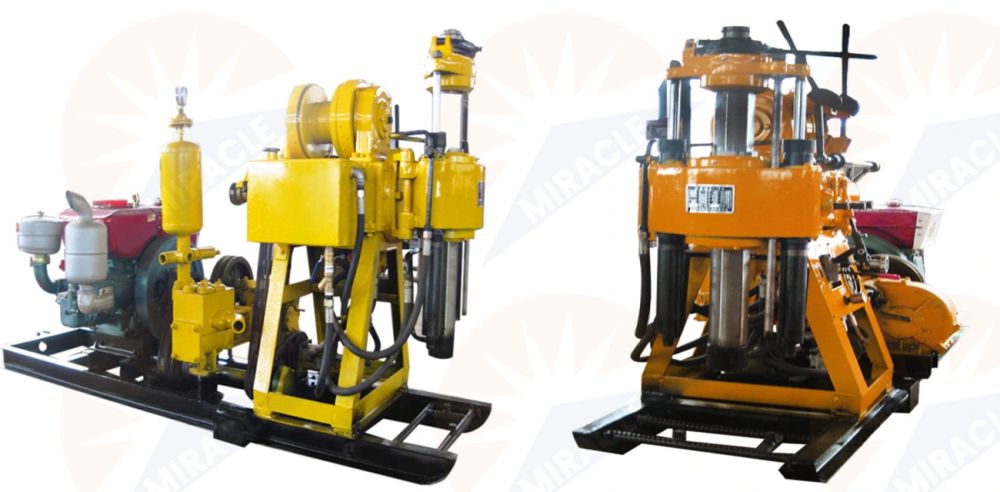

100m Water Well Drilling Rig: XY-1A
XY-1A Core Drilling Rig is a light type machine at high speed with hydraulic feeding.
XY-1A Application:
1. the drilling rig is suitable for water well drilling, prospecting, geophysical exploration, roads and buildings and other exploration and blast hole drilling projects.
2. It can be chosen according to different alloy drill bit and PDC drill bits and so on.
3. It can drill 2-9 grade sandy clay and rock etc.
| Technical parameters | Winch | Mud pump |
Max drill depth: 180m | Max lifting capacity: 9.6kN | Item: BW95 |
Hole diameter: φ75-φ220mm | Single line lifting speed: 0.41 0.82 1.64m/s | Flow: 95L/min |
End Hole diameter: 75mm | Roll dia: φ140mm | Max press: 1.2Mpa |
Kelly diameter: 53/59*4200mm | Wirerope dia.: φ9.3mm | Stroke: 93t/min |
Drill rod diameter: φ50mm | Winch roll capacity: 27m | Inlet tube dia.: φ51mm*4.5m |
Drill hole angle: 90°～75° | Drill towe | Outlet tube dia.: φ32mm*6m |
Power(Diesel engine): 20HP | Rated load: 2t | |
Weight of structure /size: 920kg/2400*950*1400 | Useful Height: 6m | |
Spindle | Tower leg dimension: 73mm | |
Spindle speed: 142 285 570r/min | ||
Spindle stroke: 450mm |

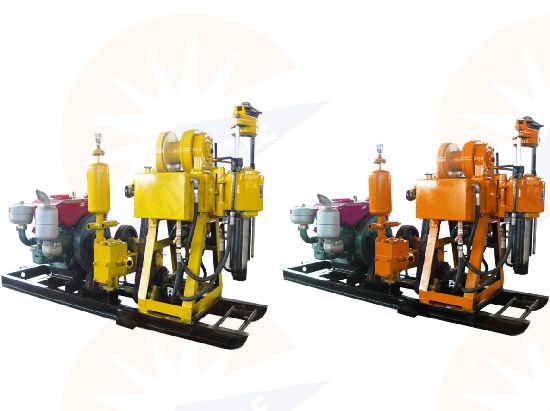

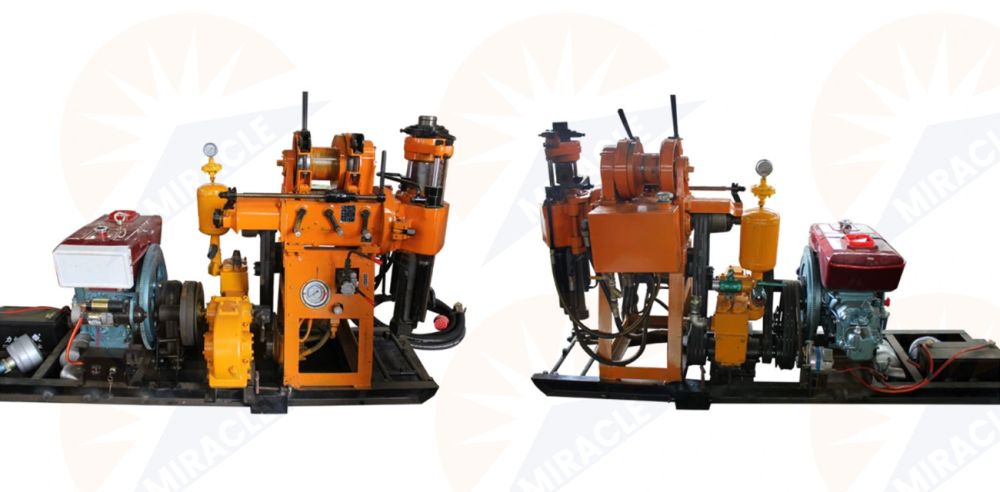

High Speed Water Well Drilling Rig: XY-1B
1. this drill is suitable for railway, hydropower, traffic, bridge, dam foundation and other buildings engineering geological survey.
2. geological core drilling, physical investigation.
3. small grout hole drilling.
4. small water well drilling.
Technical Parameter XY-1B:
Drilling depth: 180m,150m,120m,90m,70m,30m |
Drilling diameter: 75mm,91mm,110mm,130mm,150mm,300mm |
Opening diameter: 375mm |
Drill pipe diameter: 42mm, 50mm |
Vertical shaft speed: 71r/min, 142r/min, 310r/min, 620r/min |
Vertical axis travel: 450mm |
Lifting capacity: 15KN |
Wire diameter: 12mm |
Type: gear pump |
Model: YBC-12/80 |
Rated pressure: 8MPa |
Rated speed: 1500r/m |
Displacement: 8ml/r |
Recommended drilling rig models:
Recommended drilling rig models within 300 meters of drilling depth:
XY-1A, XY-1B, XY-150A, XY-150B, XY-2A, XY-2B
Recommended drilling rig models for drilling depths within 300-1000 meters:
xy-4, XY-44, XY-6, XY-6B
XY-100 drilling rig is suitable for census exploration, geophysical exploration, road and building exploration and drilling projects such as blasting.
According to customer requirements, XY-100 (no pump) and XY-100 (YJ) drilling rigs are designed on the basis of XY-100.

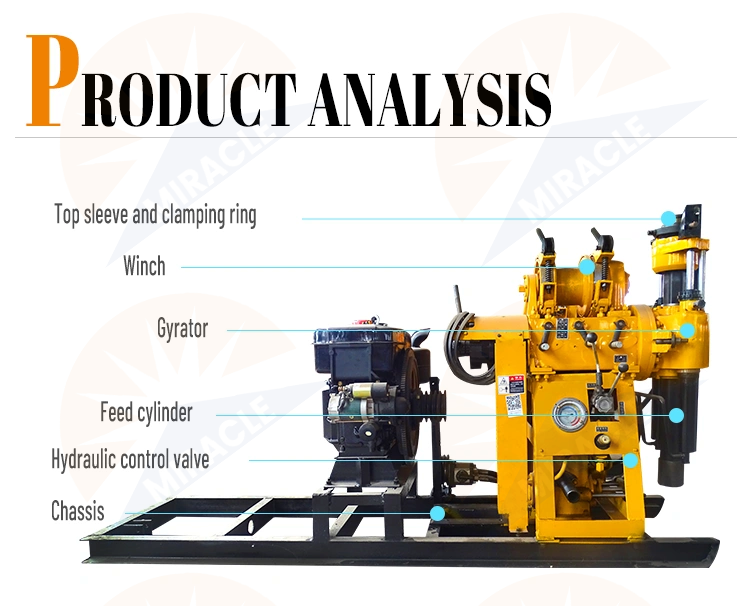

Drilling machine advantages:
1. With hydraulic automatic feeding mechanism, high drilling efficiency.
2. The upper ball clamping mechanism is used instead of the chuck, which can realize the non-stop reverse lever.
3. The handle is centralized, easy to operate, safe and reliable.
4. Compact structure, drilling rig, water pump and diesel engine are all installed on the same chassis.
5. Small footprint, light weight, strong decomposability, easy to relocate, suitable for various terrains such as plains and mountains.

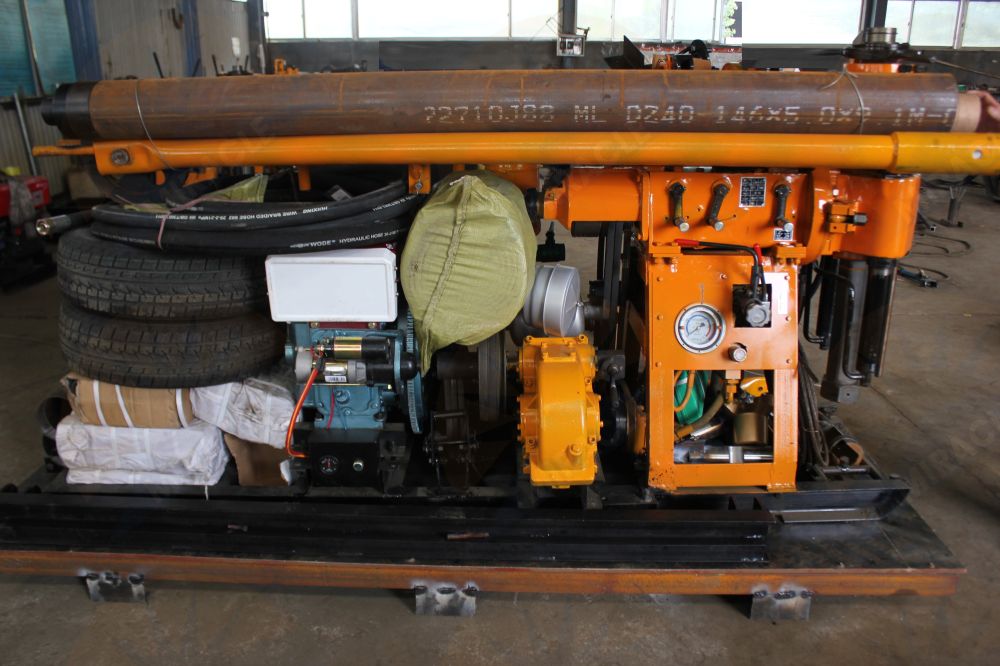

Packing:
Water well drilling rig and accessories is packed with wooden box or according to customer requirement.
Our advantage:
1. Enterprise group combines manufacture and international trade;
2. Strict quality controll system with perfect equipment;
3. High technology enterprise with advanced production equipments;
4. Prompt delivery and all-around after-sales service;
